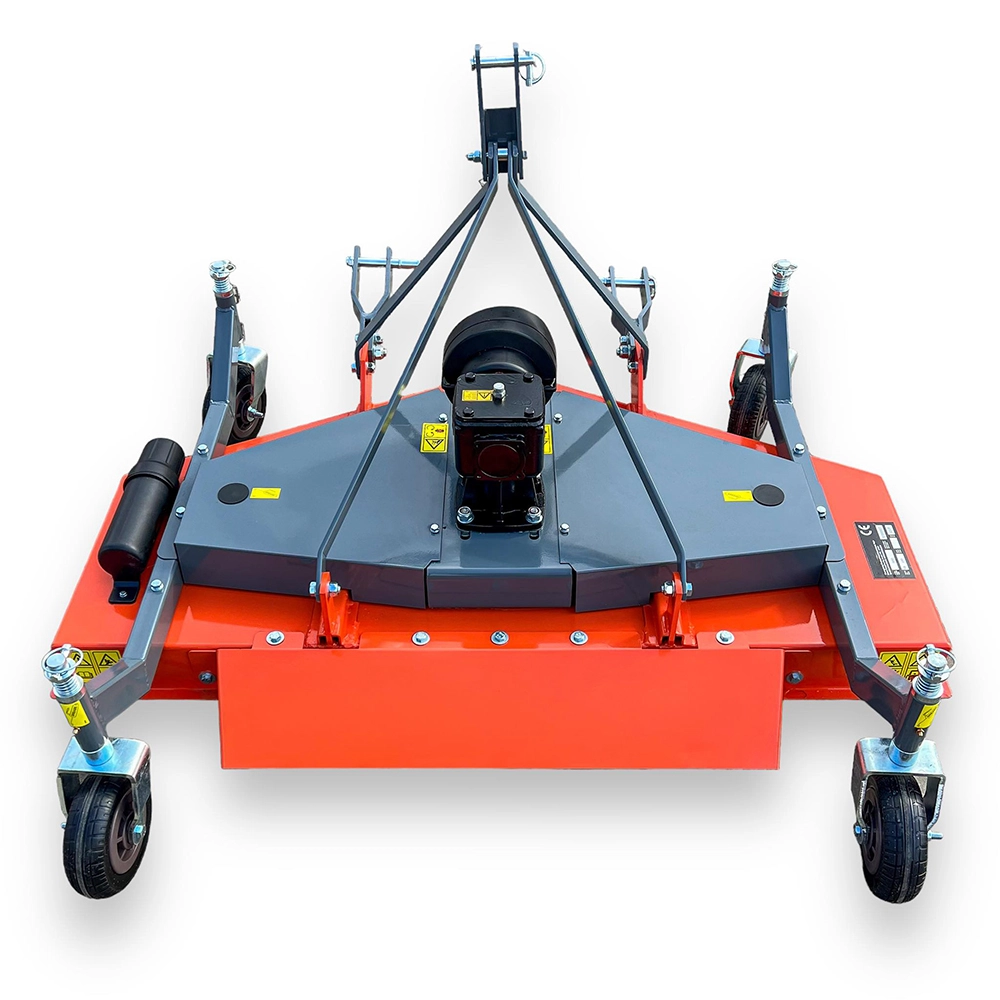

VMFM Series Finish Mower, 3 point linkage Finish Mower
VMFM Series Finish Mower, 3 point linkage Finish Mower
The VMFM 3-Point Linkage Finish Mower is a versatile and efficient mowing solution designed to deliver a clean and professional cut for various environments. Its robust construction and flexible design make it an ideal choice for maintaining golf courses, sporting fields, parklands, camping grounds, schools, homesteads, and roadsides.
Rear or Side Discharge Options: This finish mower provides two discharge configurations to suit different mowing needs:
1. Rear Discharge: Perfect for general mowing applications, ensuring the clippings are evenly distributed behind the mower for a neat finish.
2. Side Discharge: Ideal for areas where clippings need to be thrown clear, such as under orchards or along field edges.
Tractor Compatibility: Designed for use with 15-50 horsepower sub compect and compect tractors.
Sturdy Construction: Built with durability in mind, this finish mower features a rugged frame and high-quality blades that withstand the demands of regular use. The heavy-duty gearbox and reliable belt drive system ensure smooth operation and long-lasting performance.
Versatile Application: From maintaining pristine golf courses to tackling rough roadsides, this mower excels in diverse conditions. Its compact design and adjustable settings make it adaptable to various terrains and vegetation types.

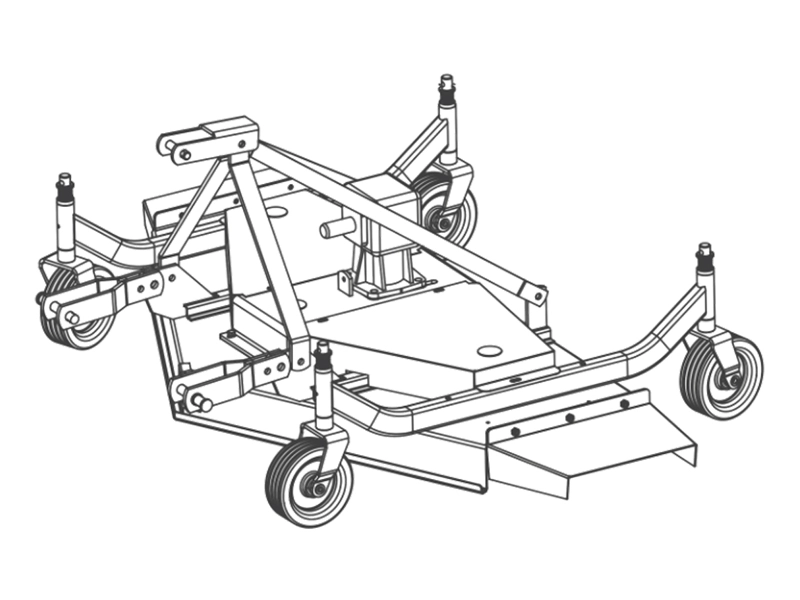

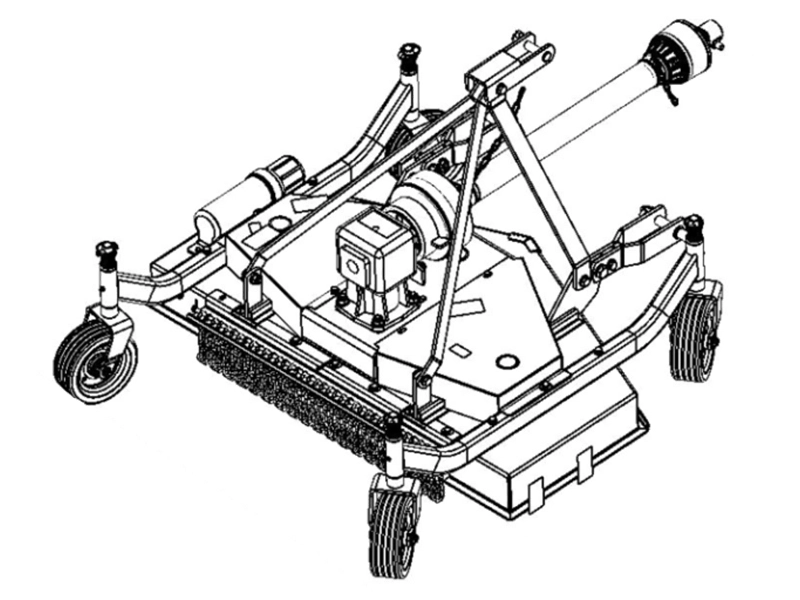

VMFM-L Rear Discharge Finish Mower

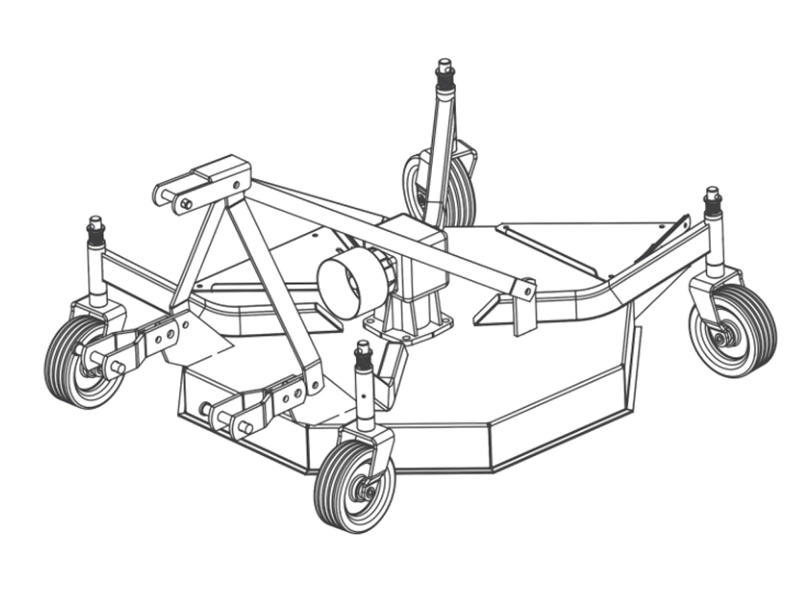

VMFM100 Rear-Side Discharge Finish Mower
Application
Golf Courses: Achieve a manicured look with a smooth, even cut.
Sporting Fields: Maintain safe and attractive grounds for players and spectators.
Orchards: Utilize the side discharge option to clear clippings away from trees.
Parklands and Schools: Keep public spaces neat and inviting.
Roadsides: Tackle tough roadside grass with ease.



| Model | VMFM100 | VMFM120S | VMFM150S | VMFM180S | VMFM120L | VMFM150L | VMFM180L | |
|---|---|---|---|---|---|---|---|---|
| Width (Side To Side) | mm | 1040 | 1640 | 1940 | 2140 | 1640 | 1580 | 1880 |
| Length (Front To Back) | mm | 1260 | ||||||
| Height (Bottom To Top of Uplink) | mm | 790 | ||||||
| Working Width | mm | 1000 | 1200 | 1500 | 1800 | 1200 | 1500 | 1800 |
| Waste Discharge | / | Rear-side | Side discharge | Rear discharge | ||||
| Number of Blades | units | 1 | 3 | |||||
| Blade Rotary Speed | rpm | 1528 | ||||||
| PTO Speed Required | rpm | 540 | ||||||
| 3-Point Linkage | / | Cat I | ||||||
| Match Power | hp | 15-50hp | ||||||
| Shipping Wegith | Kg | 115 | 166 | 177 | 210 | 169 | 180 | 214 |

STANDARD
- Normal Cat.1 PTO Shaft 6-6 Spline
OPTIONS
- Clutch-Type Cat.1 PTO Shaft 6-6 Spline
