VMFLL Series 3-Point Linkage Slasher Mower, Rotary grass cutter
VMFLL Series 3-Point Linkage Slasher Mower, Rotary grass cutter
The VMFLL Series 3-Point Linkage Slasher/Mower is a high-performance, durable solution designed for a variety of mowing and slashing tasks. Built for heavy-duty use, it is compatible with 20-80 horsepower tractors, making it an ideal choice for farms, estates, and landscaping projects.
Versatile Working Width:Available in sizes ranging from 1.04m to 1.74m, catering to different operational needs.
Adjustable Cutting Height:Easily adjustable from 40mm to 140mm, ensuring precise results for various terrains and vegetation.

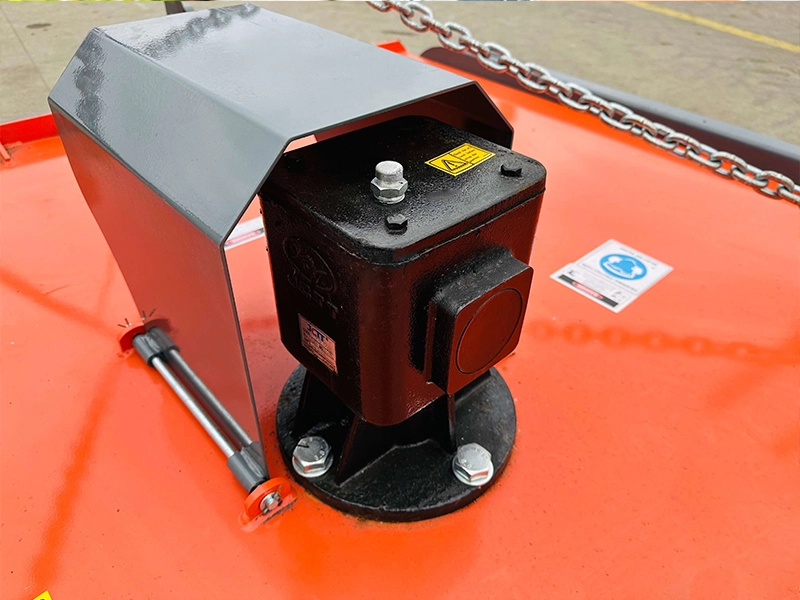

Heavy-Duty Gearbox:Ensures reliable performance and longevity, even under demanding conditions.

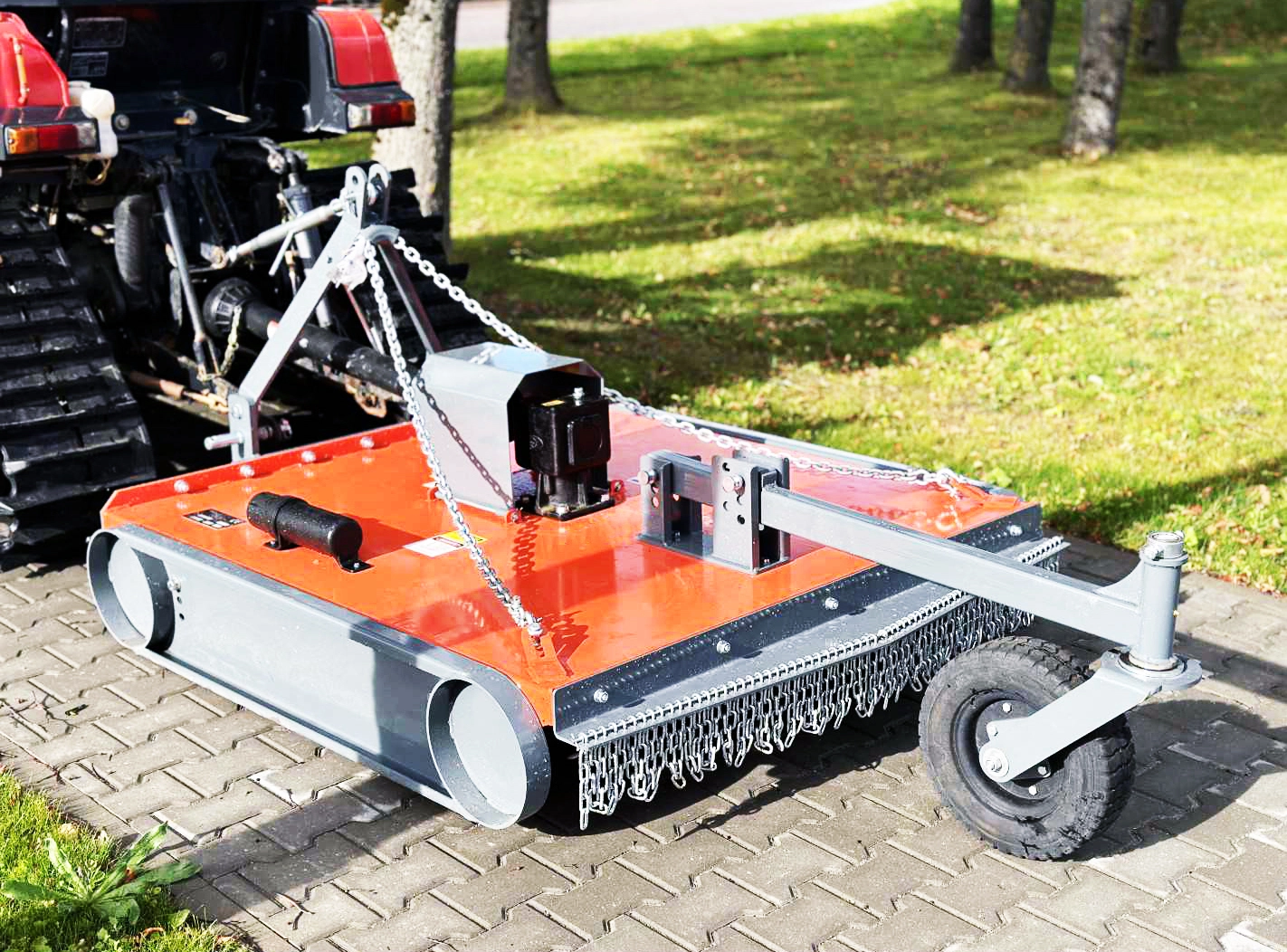

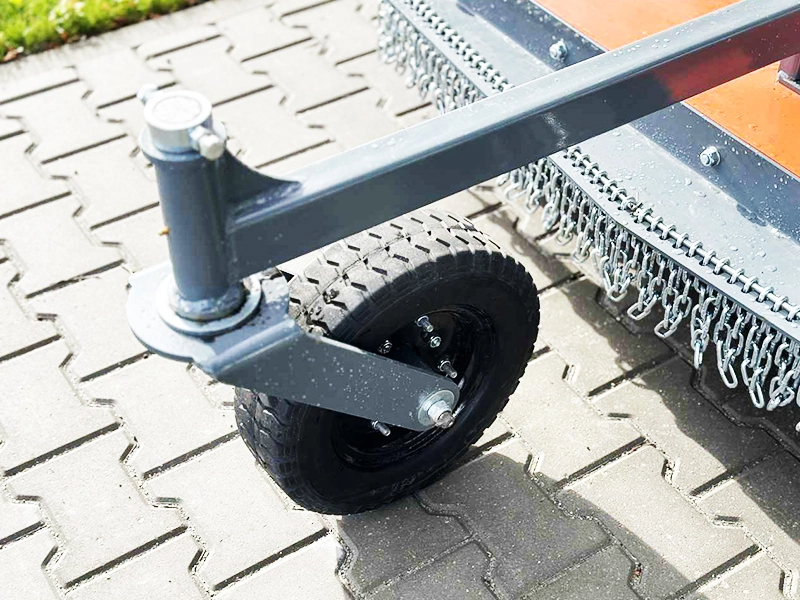

Optional Rear Support Tire:Enhances stability and maneuverability for consistent mowing on uneven ground.
Application
Perfect for maintaining grasslands, clearing overgrown areas, roadside maintenance, and general mowing tasks.
With its robust construction, adaptable design, and reliable performance, the VMFLL Series delivers exceptional results across a wide range of applications. It's the ultimate tool for efficient and precise mowing.
Invest in the VMFLL Series Slasher/Mower for superior performance and long-lasting value!
| MODEL | VMSLL110 | VMSLL120 | VMSLL140 | VMSLL150 | VMSLL160 | VMSLL170 | VMSLL180 | |
|---|---|---|---|---|---|---|---|---|
| Power Required | HP | 20-30 | 20-35 | 25-40 | 30-50 | 35-60 | 40-70 | 50-80 |

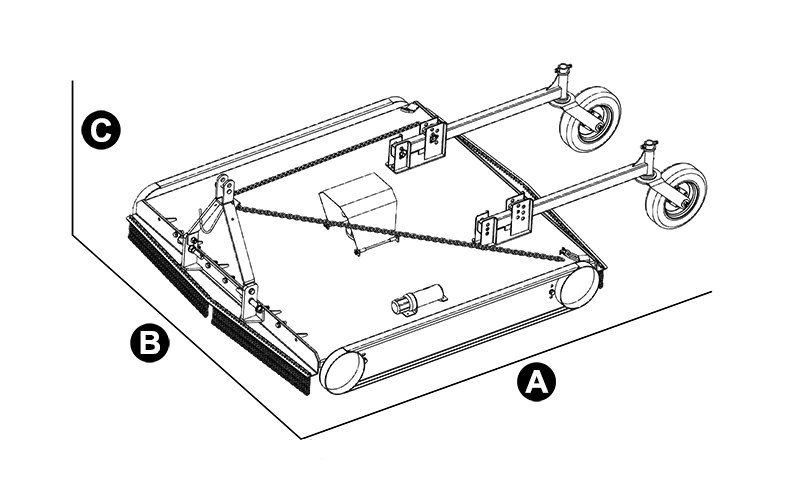

| Length (A) | mm | 1300 | 1400 | 1600 | 1700 | 1800 | 1900 | 2000 |
| Width (B) | mm | 1100 | 1200 | 1400 | 1500 | 1600 | 1700 | 1800 |
| Height (C) | mm | 900 | ||||||
| Structure Weight | KG | 165 | 185 | 190 | 225 | 255 | 280 | 300 |
| Cutting Width | mm | 1040 | 1140 | 1340 | 1440 | 1540 | 1640 | 1740 |
| Cutting Height | mm | 40-140 Adjustable | ||||||
| Working Efficiency | Ha/h | 2-4 | 2.5-4.5 | 3-5 | 3.5-5.5 | 4-6 | 4.5-6.5 | 5-7 |
| Input Turnning Speed | RPM | 540 | ||||||
| Pto Spline | 6×6×850 | |||||||
STANDARD
- Normal Cat.1 PTO Shaft 6-6 Spline
OPTIONS
- Clutch-Type Cat.1 PTO Shaft 6-6 Spline
- 1/2 Set Rear Support Tire
