VMFC V-shaped snow plow, Tractor rear mounted, FEL attachment
VMFC V-shaped snow plow, Tractor rear mounted, FEL attachment

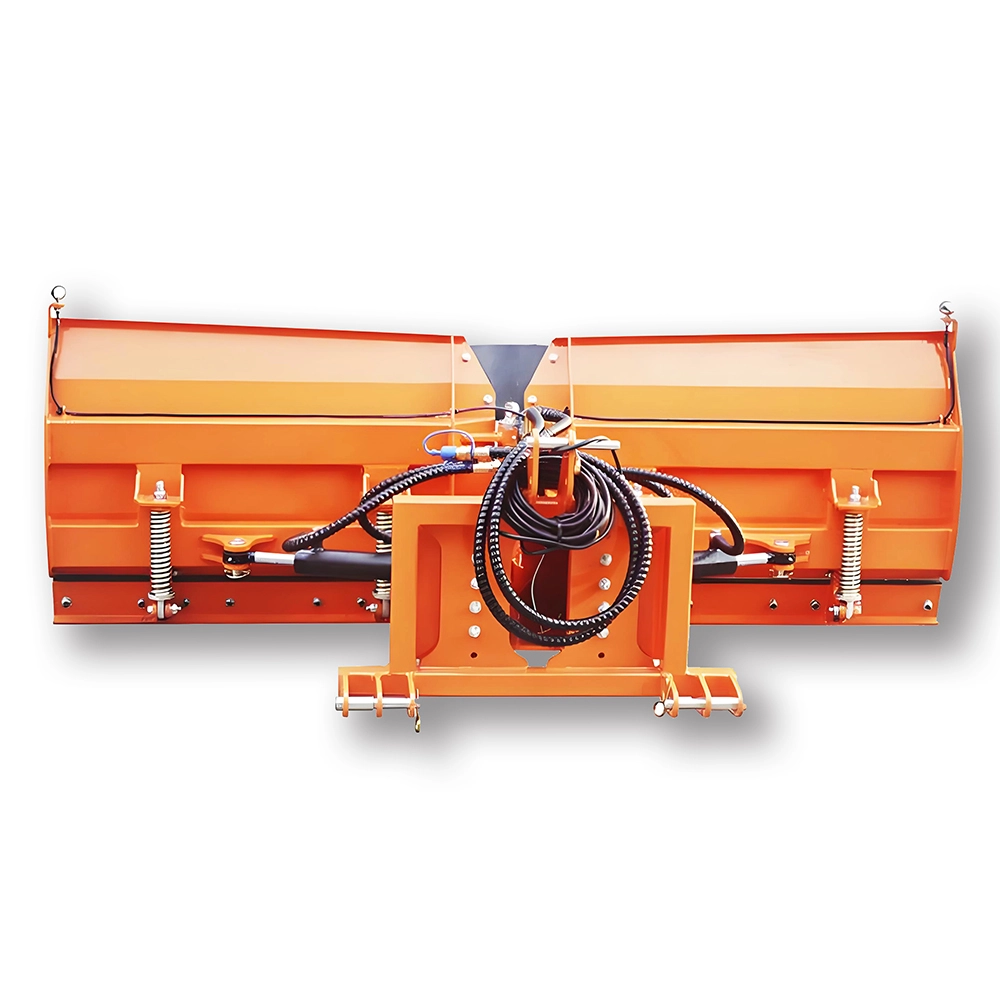

The VMFC V Sharp Snow Plow is designed for efficient and reliable snow removal in various environments, offering superior performance with its U-shaped design and adjustable features.
Suitable for snow removal at airports, parking lots, squares, highways, expressways, and bridges.
Effectively pushes snow to both sides, clearing space for vehicles and ensuring clean roadways.
Adjustable working width ranging from 2000mm to 3000mm for versatility in different scenarios.
Blade can be adjusted to 4 angles, allowing it to plow through deep snow deposits with ease.
Equipped with a rubber flap bolted to the top of the blade for enhanced snow-moving power and efficiency.
The VMFC Snow Blade combines durability, power, and efficiency to deliver outstanding performance in demanding snow removal tasks.

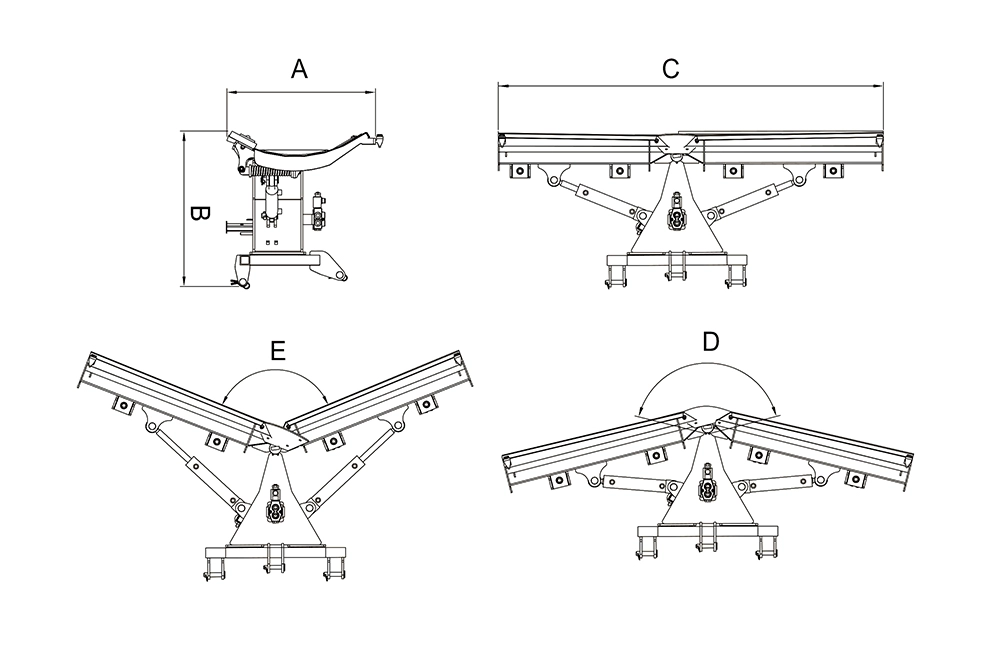

| Model | VMBL-200 | VMBL-220 | VMBL-240 | VMBL-260 | VMBL-280 | VMBL-300 | |
|---|---|---|---|---|---|---|---|
| Blade Height (A) | mm | 745 | 745 | 745 | 745 | 745 | 745 |
| Length (B) | mm | 850 | 850 | 850 | 850 | 850 | 850 |
| Blade Width (C) | mm | 2066 | 2266 | 2466 | 2666 | 2866 | 3066 |
| Angle (E) | Angle | 145° | 145° | 145° | 142° | 142° | 142° |
| Angle (D) | Angle | 140° | 140° | 140° | 141° | 141° | 141° |
| Weight | Kg | 240 | 250 | 265 | 280 | 295 | 310 |
| Match Power | HP | 40-100 | |||||
