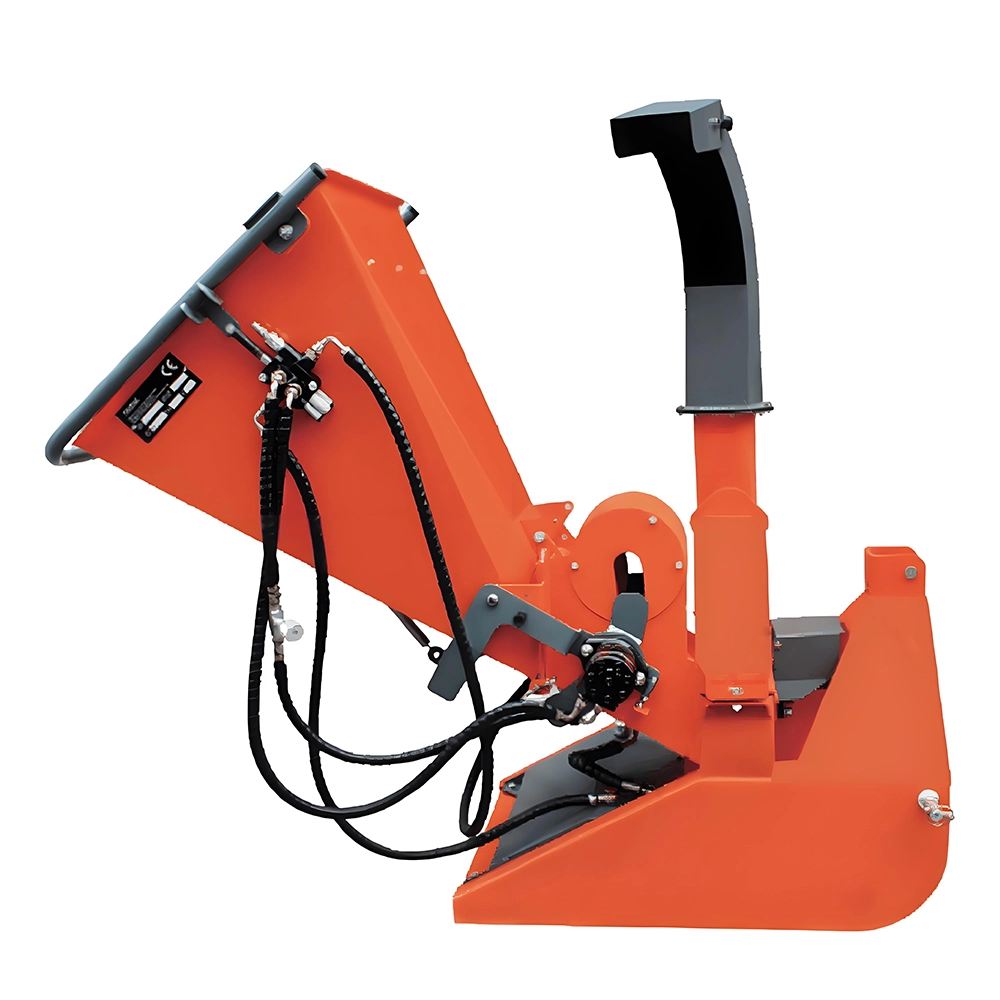

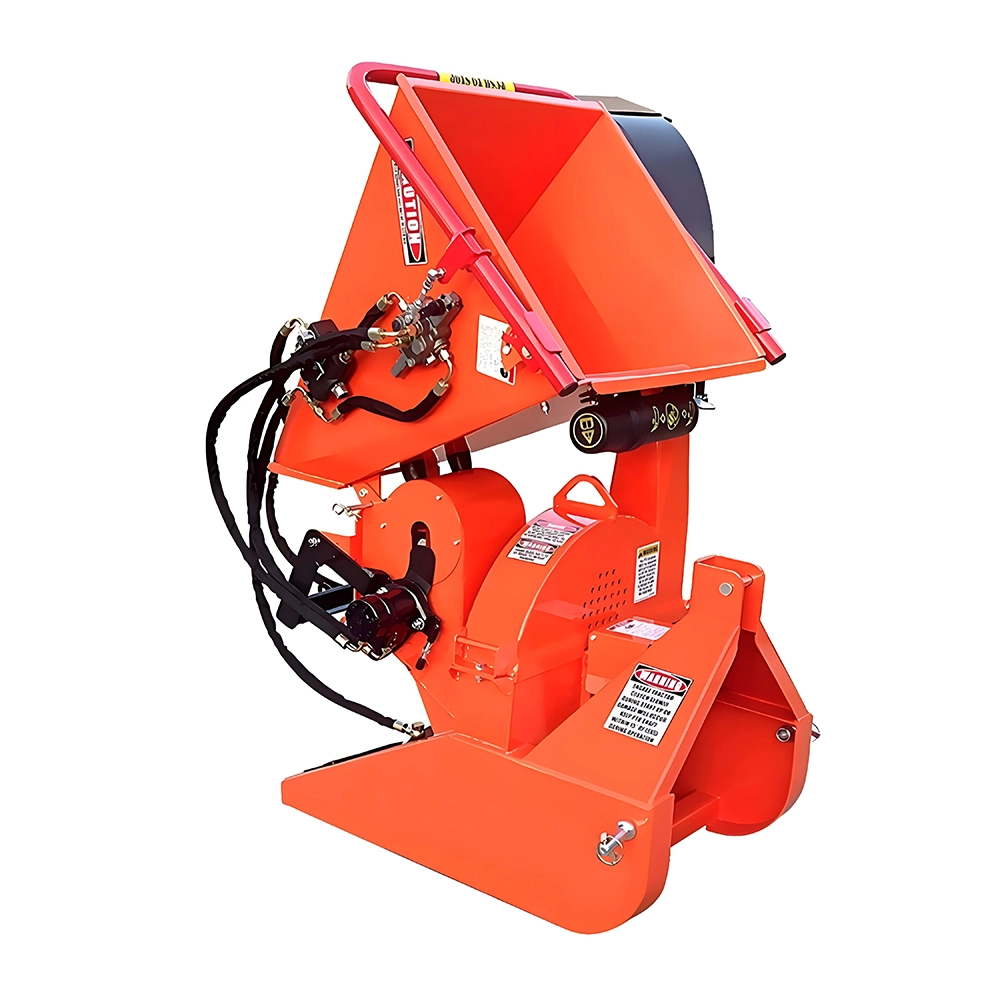

VMWFT100 3 Point Linkage Wood Chipper
VMWBC 3-Point Linkage Wood Chipper
The VMWFT100 is a robust, compact PTO-driven wood chipper designed for efficient and reliable performance. Perfectly suited for 20-50 HP tractors, it’s built to handle tough chipping tasks with ease, making it ideal for agricultural, landscaping, and forestry applications.
PTO-Driven Efficiency: Powered by the tractor’s PTO for consistent, high-output performance.
Hydraulic Auto-Feed System: Increases productivity with smooth, automatic feeding of materials.
360° Rotating Discharge Chute: Allows flexible chip discharge direction for easy operation.
Large In-Feed Opening: 8" x 6" in-feed opening handles branches and materials efficiently
Maximum Chipping Capacity: Capable of processing wood with a maximum diameter of up to 4 inches.
Compact & Durable Design: Built for heavy-duty performance while maintaining a space-saving footprint.
| Model | VMWFT100 | |
|---|---|---|
| Match Power | HP | 20-50 |
| Max Dia.of Wood Chips | mm | 100 |
| Hourly Production | m³ | 6-8 |
| Dia of Flywheel | mm | 635 |
| No of Knices of Flywheel | Pcs | 4 |
| Thinkness of Flywheel | mm | 20 |
| Height of Discharge hood | mm | 1524 |
| Chipper Housing Opening | mm | 200*150 |
| Feeding Method | Hydraulic | |
| Weight | kg | 195 |
STANDARD
- Normal Cat.1 PTO Shaft 6-6 Spline
OPTIONS
- Clutch-Type Cat.1 PTO Shaft 6-6 Spline
