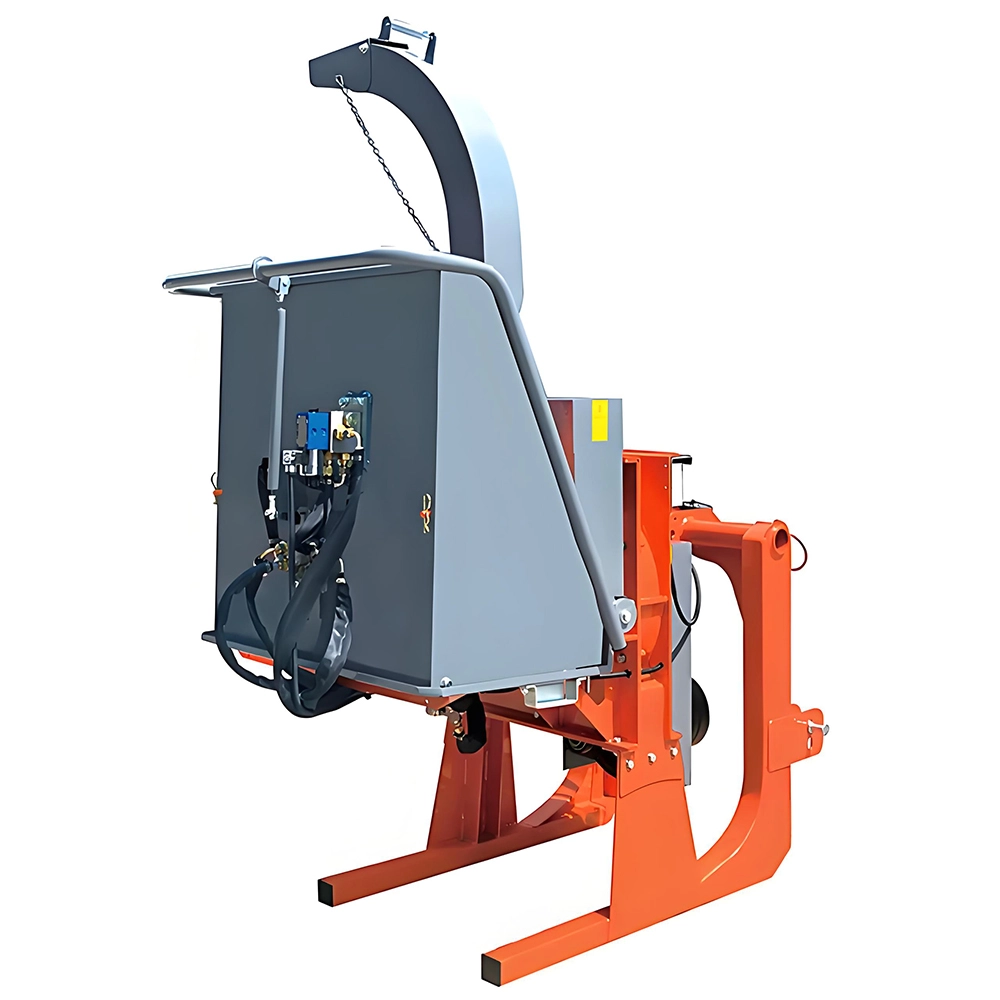

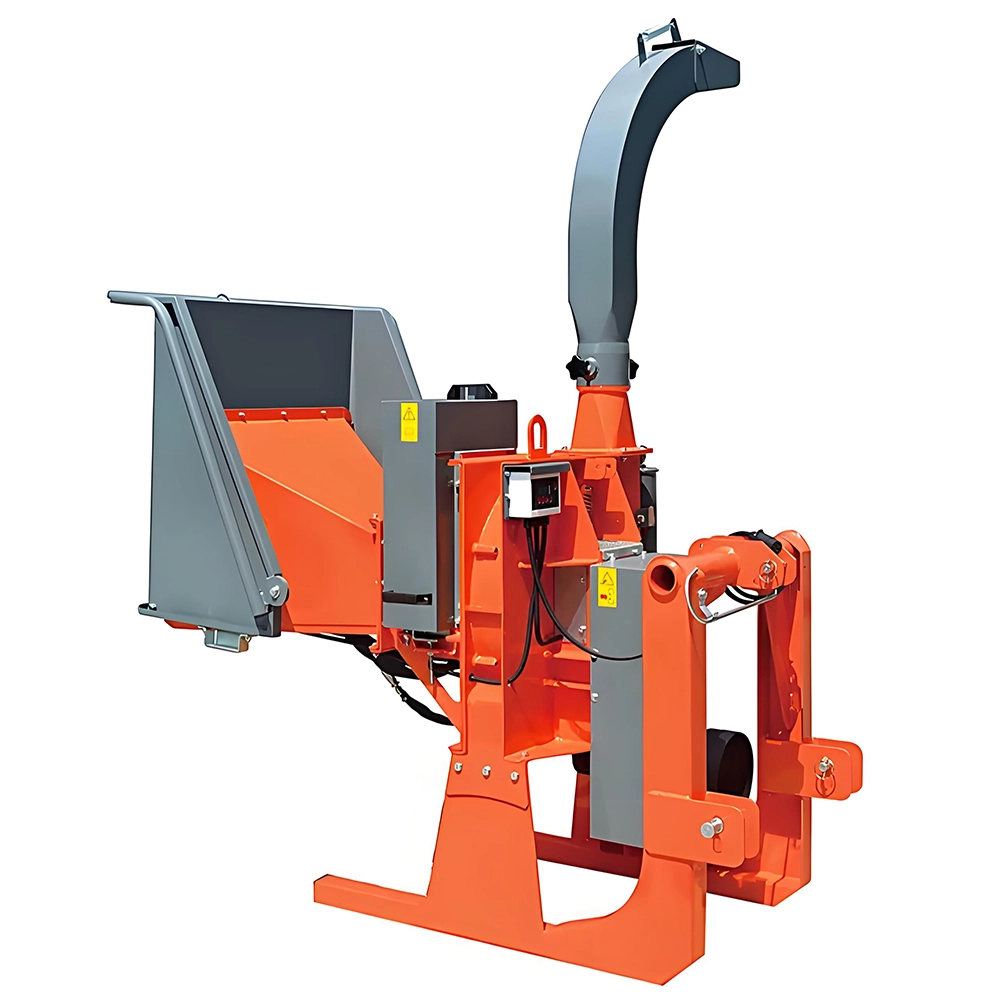

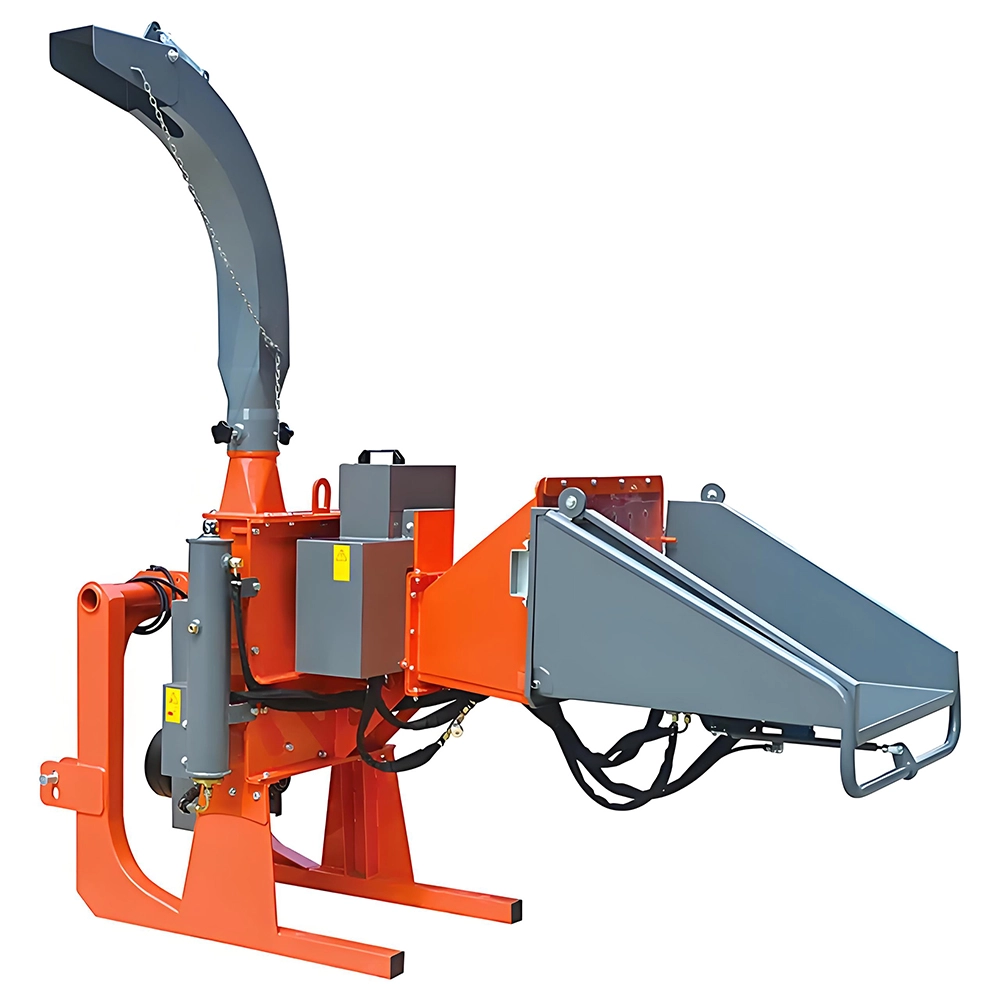

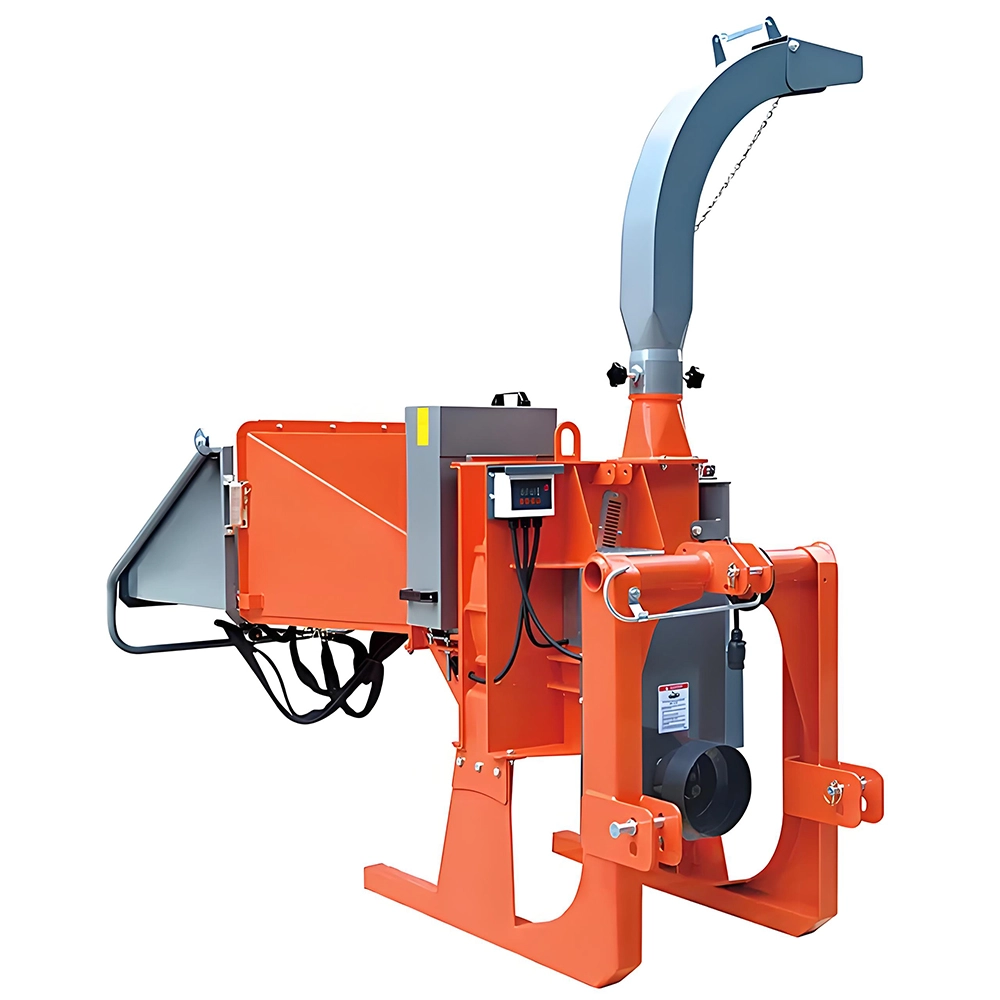

VMWFC-130 3-Point Linkage Wood Chipper
VMWFC-130 3-Point Linkage Wood Chipper
The VMWFC-130 is a high-performance, PTO-driven wood chipper designed to deliver superior chipping efficiency for agricultural, forestry, and landscaping applications. Compatible with 25-65 HP tractors, it features a robust independent hydraulic system and a durable structure for continuous, heavy-duty operation. The 3-point linkage (CAT I and II) ensures easy attachment to a wide range of tractors, making it an ideal choice for both small and large-scale wood chipping tasks.
PTO-Driven Efficiency: Powered by the tractor’s PTO, delivering consistent performance.
Independent Hydraulic System: Enhances auto-feed efficiency for effortless chipping.
3-Point Linkage (CAT I and II): Easy to attach to a wide range of tractors.
360° Rotating Discharge Chute: Offers flexible chip discharge direction.
Hydraulic Auto-Feed Hopper: Reduces manual labor for smooth feeding of materials.
Large In-Feed Opening: 7.2" x 7.6" opening accommodates bulky branches with ease.
Application
Ideal for farms, orchards, landscaping, forestry operations, and municipal clearing projects.
| Model | VMWFC-130 | |
|---|---|---|
| Match Power | HP | 25-65 |
| Max Dia.of Wood Chips | mm | Φ130 |
| Hourly Production | m³ | 7-10 |
| Dia of Flywheel | mm | 600 |
| No of Knices of Flywheel | Pcs | 2 |
| Thinkness of Flywheel | mm | 20 |
| Chipper Housing Opening | mm | 120-270 |
| Feeding Method | Hydraulic | |
| Weight | kg | 380 |
STANDARD
- Normal Cat.1 PTO Shaft 6-6 Spline
OPTIONS
- Clutch-Type Cat.1 PTO Shaft 6-6 Spline
