WMWBC 3-Point Linkage Wood Chipper
VMWBC 3-Point Linkage Wood Chipper

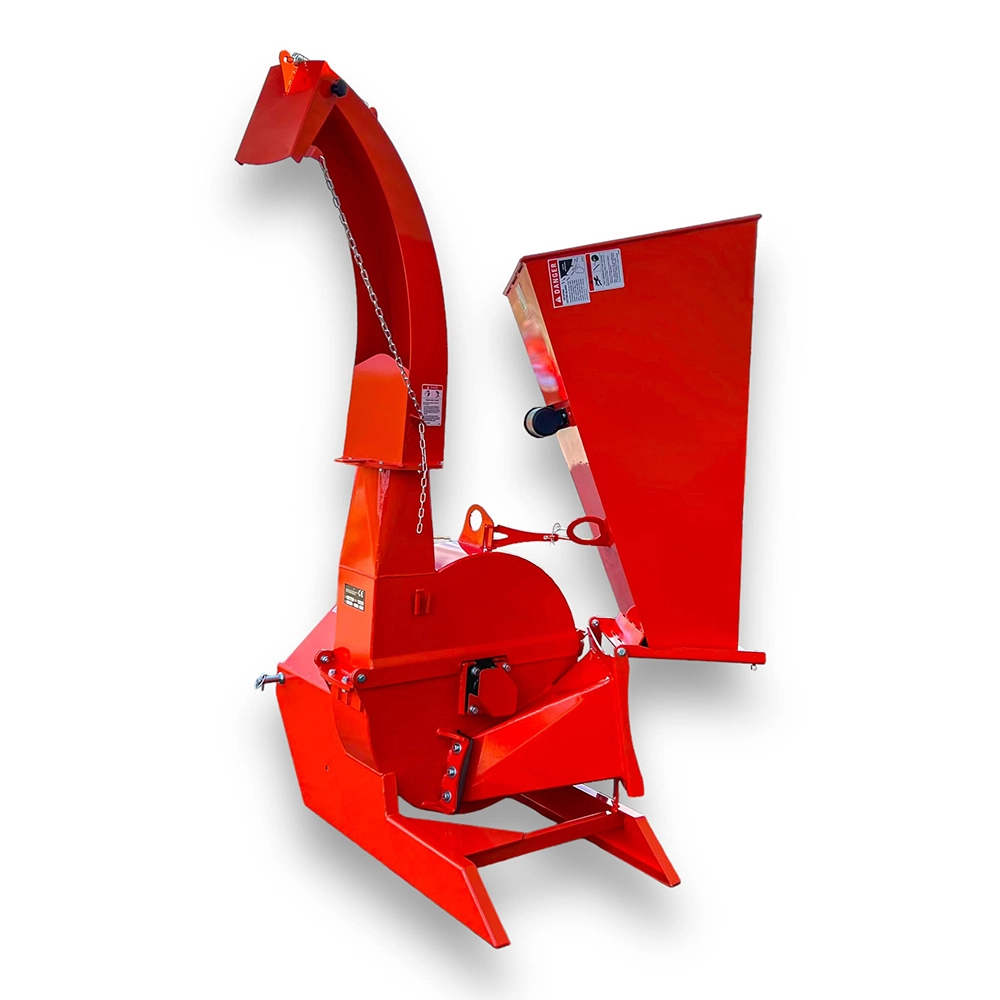

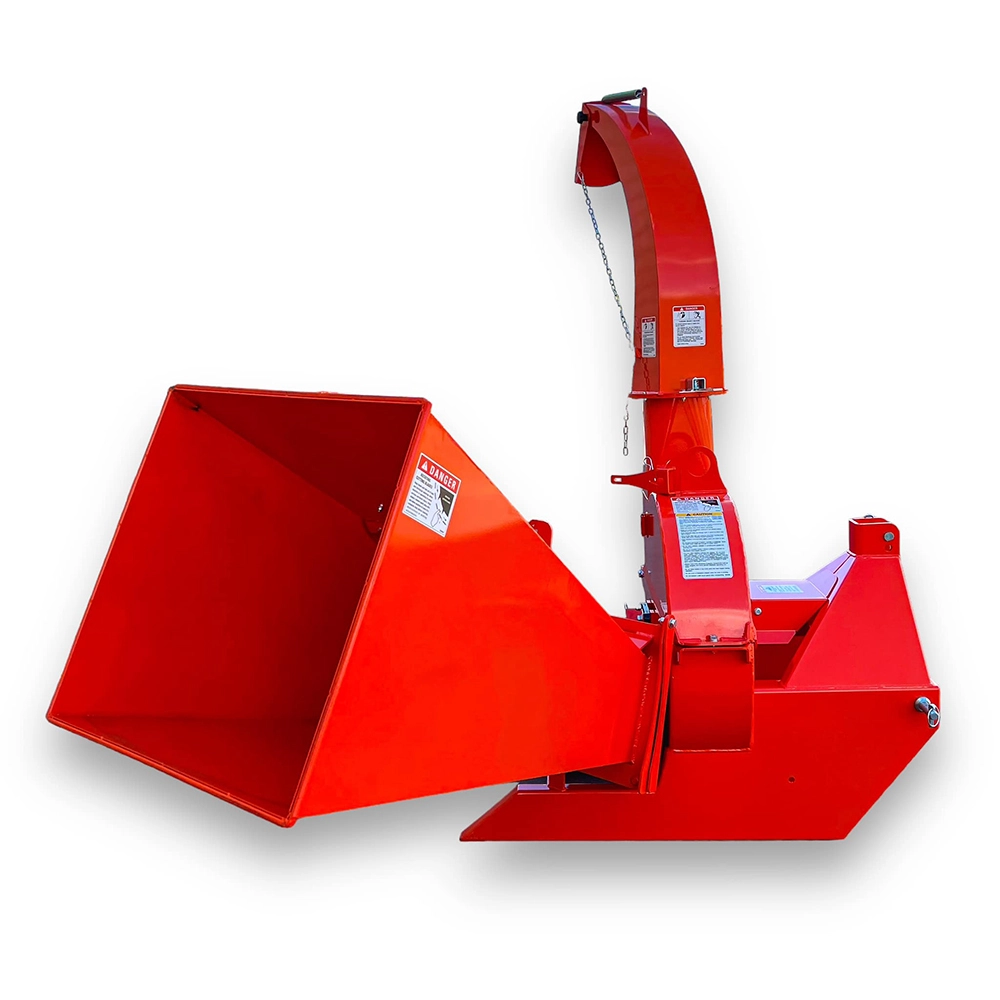

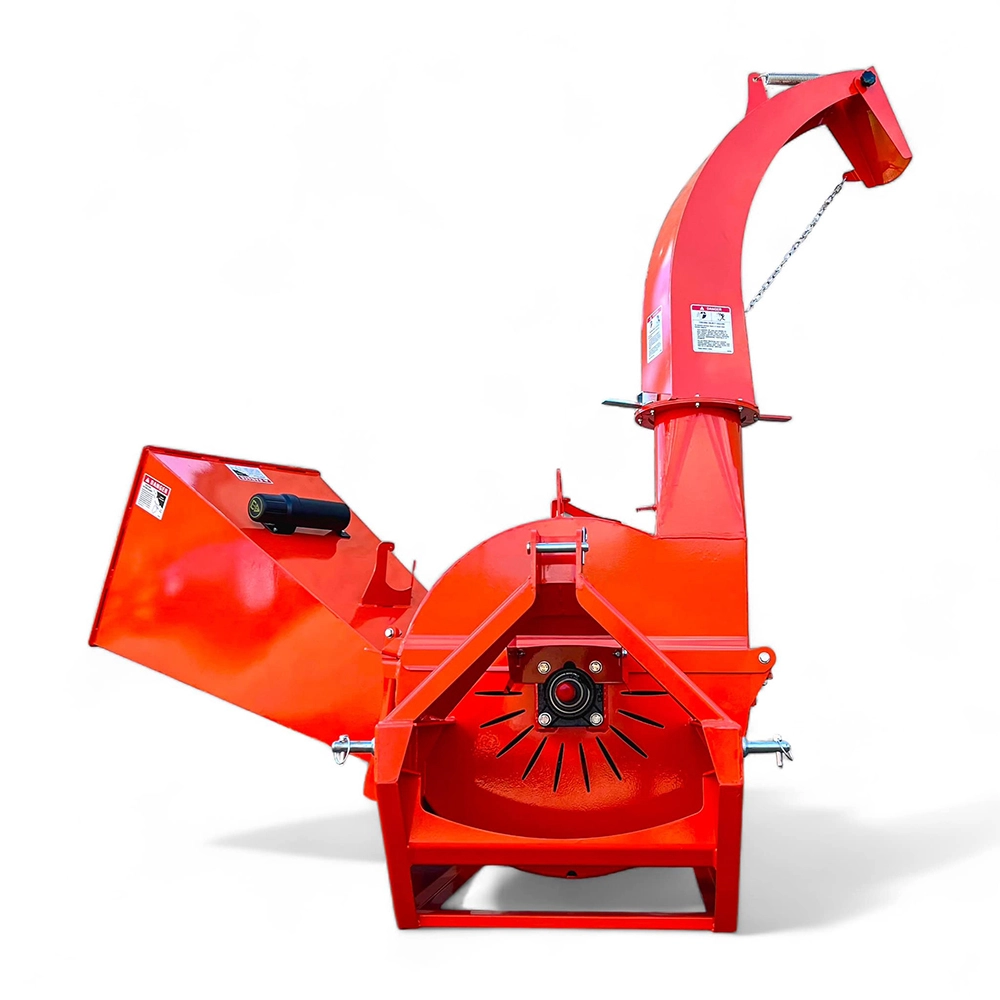

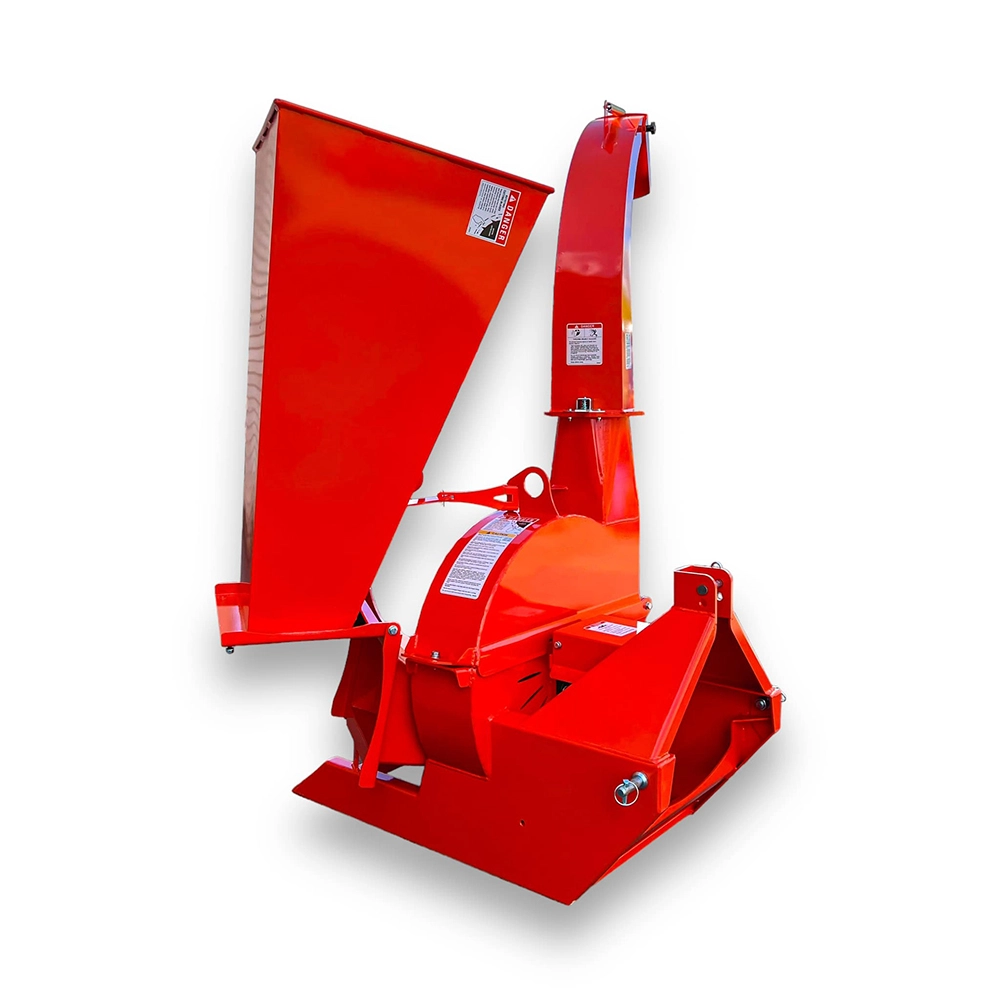

The VMWBC 3-Point Linkage Wood Chipper is a high-performance, PTO-driven attachment designed for efficient wood chipping in agricultural, forestry, and landscaping applications. Built for continuous operation, it’s compatible with 25-100 HP tractors and connects easily via Category I & II 3-point linkage.
PTO Driven Power: Efficiently powered by the tractor’s PTO for consistent, high-output chipping performance.
Wide Tractor Compatibility: Fits tractors from 25 to 100 HP, with easy connection to CAT I II 3-point linkage systems.
360° Rotating Discharge Chute: Allows precise control over the discharge direction for maximum convenience during operation.
High-Efficiency Cutting System: Equipped with 4 sharp knives on the flywheel for powerful, continuous chipping.
Reliable Durable Structure: Robust design ensures long-lasting performance, even under heavy workloads.
Easy Maintenance: Simple structure with easy access to key components, reducing downtime and maintenance efforts.
| Model | VMWBC-100M | VMWBC-160M | VMWBC-160H | |
|---|---|---|---|---|
| Match Power | HP | 20-45 | 40-100 | 40-100 |
| Max Dia.of Wood Chips | mm | Φ100 | Φ160 | Φ160 |
| Hourly Production | m³ | 4-6 | 8-13 | 8-13 |
| Dia of Flywheel | mm | 635 | 762 | 762 |
| No of Knices of Flywheel | Pcs | 4 | 4 | 4 |
| Thinkness of Flywheel | mm | 12 | 20 | 20 |
| Height of Discharge hood | mm | 1525 | 1880 | 1880 |
| Chipper Housing Opening | mm | 100*250 | 160*300 | 160*300 |
| Feeding Method | manual | Manual | Hydraulic | |
| Weight | kg | 195 | 491 | 535 |
STANDARD
- Normal Cat.1 PTO Shaft 6-6 Spline
OPTIONS
- Clutch-Type Cat.1 PTO Shaft 6-6 Spline
