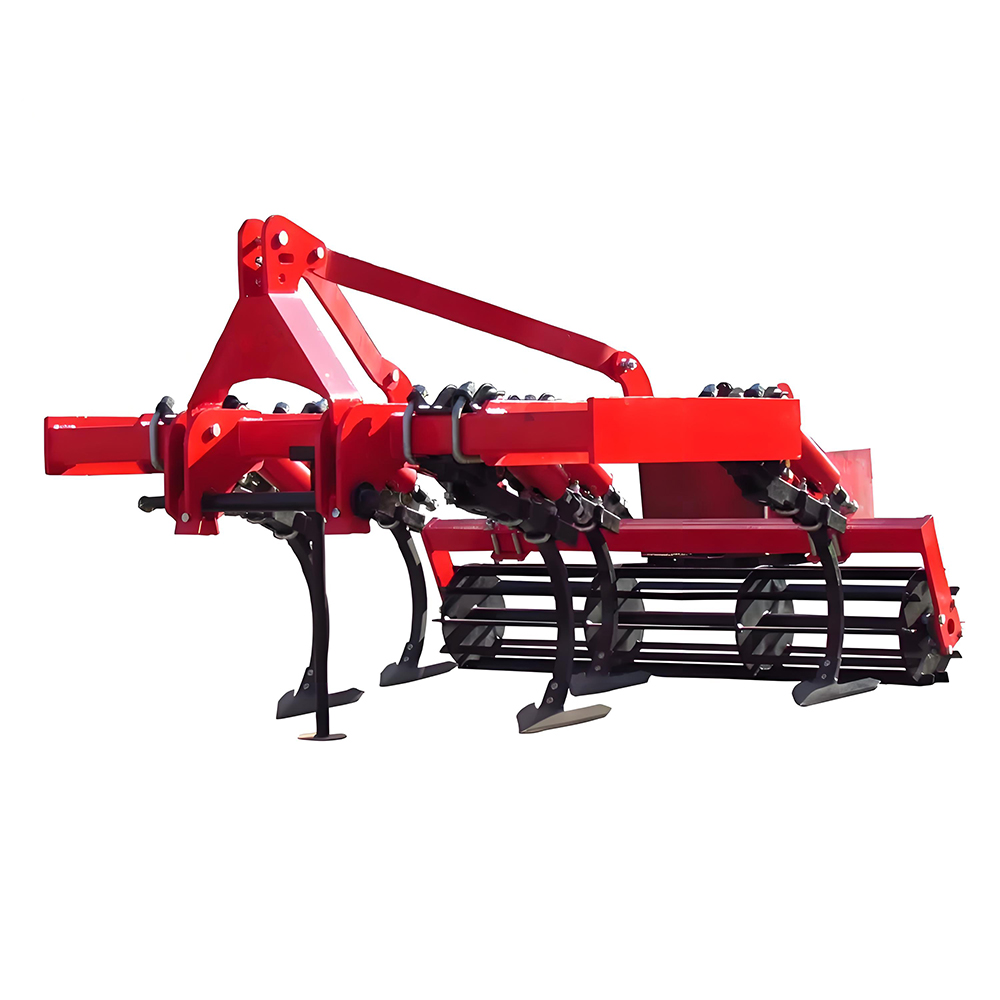

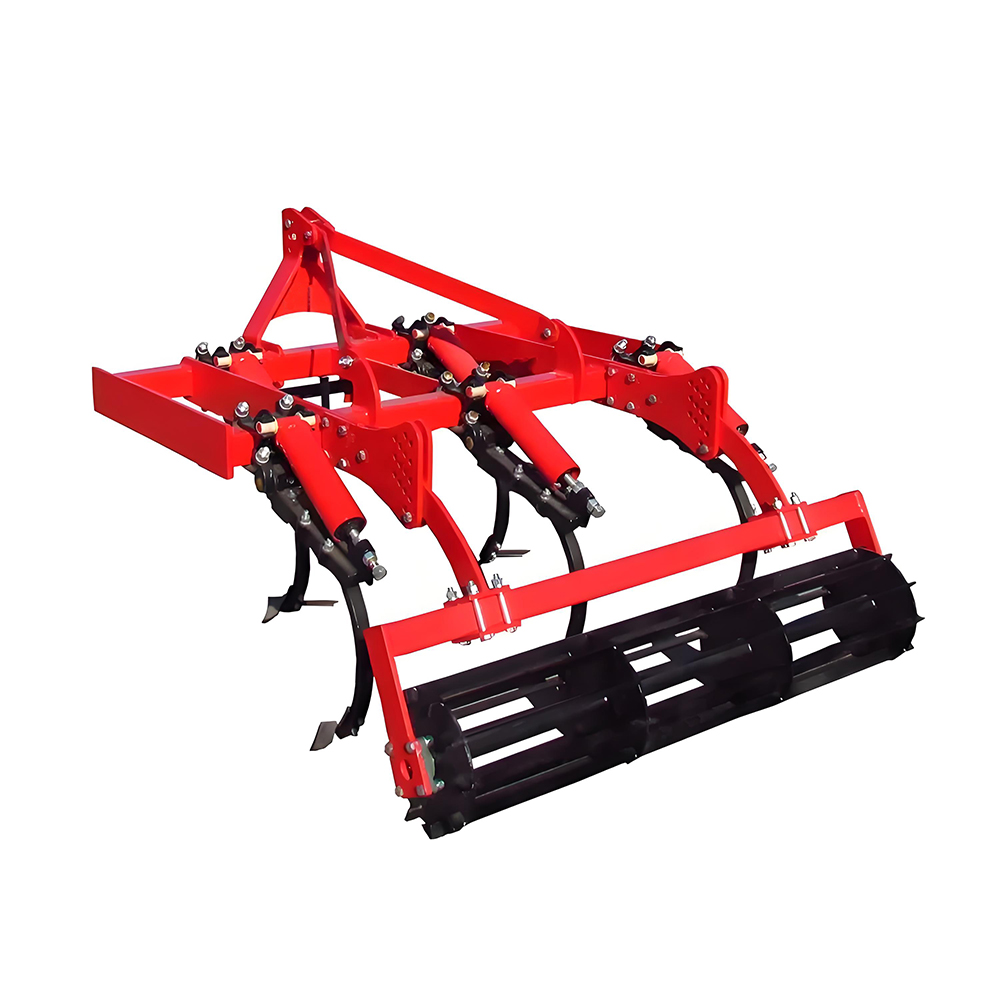

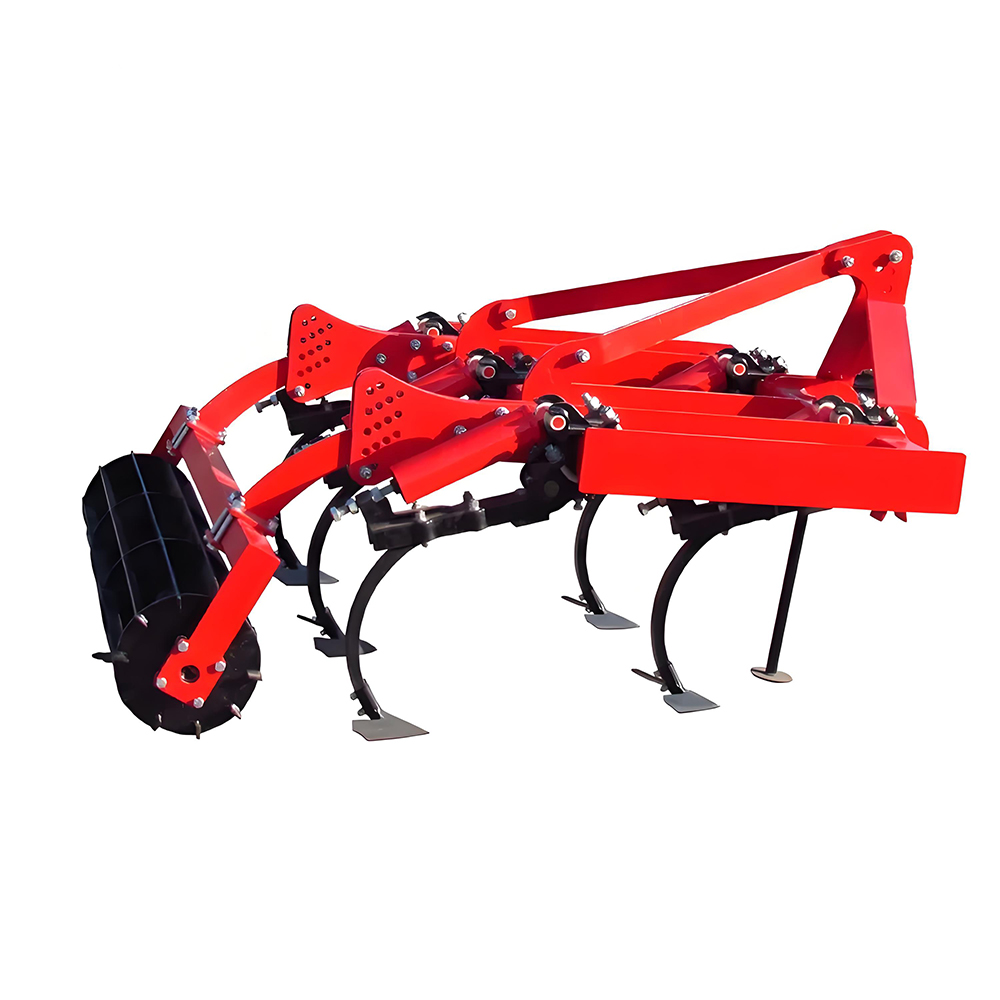

VMSCA 3-Poink linkage Heavy Duty Subsoiler Cultivator

Short Description:

The VMSCA 3-Point Linkage Heavy Duty Subsoiler Cultivator is a high-performance agricultural tool designed for deep tillage and soil loosening in fields covered with straw or other crop residues. Its robust construction and efficient design make it ideal for challenging soil conditions, such as those found in wheat sorghum straw covering and corn straw smothering. With its adjustable tilling width ranging from 2m to 4m and a depth capability of 20cm to 40cm.


  • Tilling Width: 2-4 m
  • Tilling Depth: 20-40 cm
  • No. Of Tines: 5, 7, 9,

Content details

VMSCA 3-Poink linkage Heavy Duty Subsoiler Cultivator

The VMSCA Heavy Duty Subsoiler Cultivator is designed for deep soil loosening and tillage, ideal for straw-covered fields and corn straw smothered surfaces. With a tilling width of 2m to 4m and a tilling depth of 20cm to 40cm, this subsoiler is suitable for tractors ranging from 100-180hp and is engineered for heavy-duty operations. It excels at deep loosening, weed control, and enhancing soil aeration, helping prepare the soil for optimal crop growth.


Deep Soil Loosening:

Ideal for deep tillage up to 40cm, breaking compacted soil layers to improve root penetration and water absorption.

Perfect for fields with wheat sorghum straw covering and corn straw smothering, allowing better soil aeration and preparing the land for planting.


Large Soil Loosening Area:

The wide working width of 2m to 4m ensures efficient operation across large areas, saving time and improving productivity.


Effective Weed Control:

The subsoiler performs well in weed management, helping uproot unwanted plants while improving soil structure.


Improved Passability:

Features good passability in challenging soil conditions, such as straw-covered fields, though working resistance may be higher.


Sturdy & Durable:

Built to withstand heavy-duty work in tough conditions, with high-strength materials designed for longevity.


Applications:

Perfect for deep loosening, straw-covered fields, weed control, and soil aeration in agricultural operations, the VMSCA Heavy Duty Subsoiler ensures optimal soil health and improves crop yields by breaking compacted layers and improving root growth conditions.

VMSCA 3-Poink linkage Heavy Duty Subsoiler Cultivator


                VMSCA 3-Poink linkage Heavy Duty Subsoiler Cultivator
Technical Parameters
Model VMSCA-200 VMSCA-300 VMSCA-400
No. Of Tines Units 5 7 9
Working width mm 2000 3000 4000
Working depth mm 200-400 200-400 200-400
Weight Kg 750 950 1150
Matched power  Hp 100-125 130-150 160-180
Length mm 2200 3400 4400
Width mm 2400 2400 2400
Height mm 1350 1350 1350
