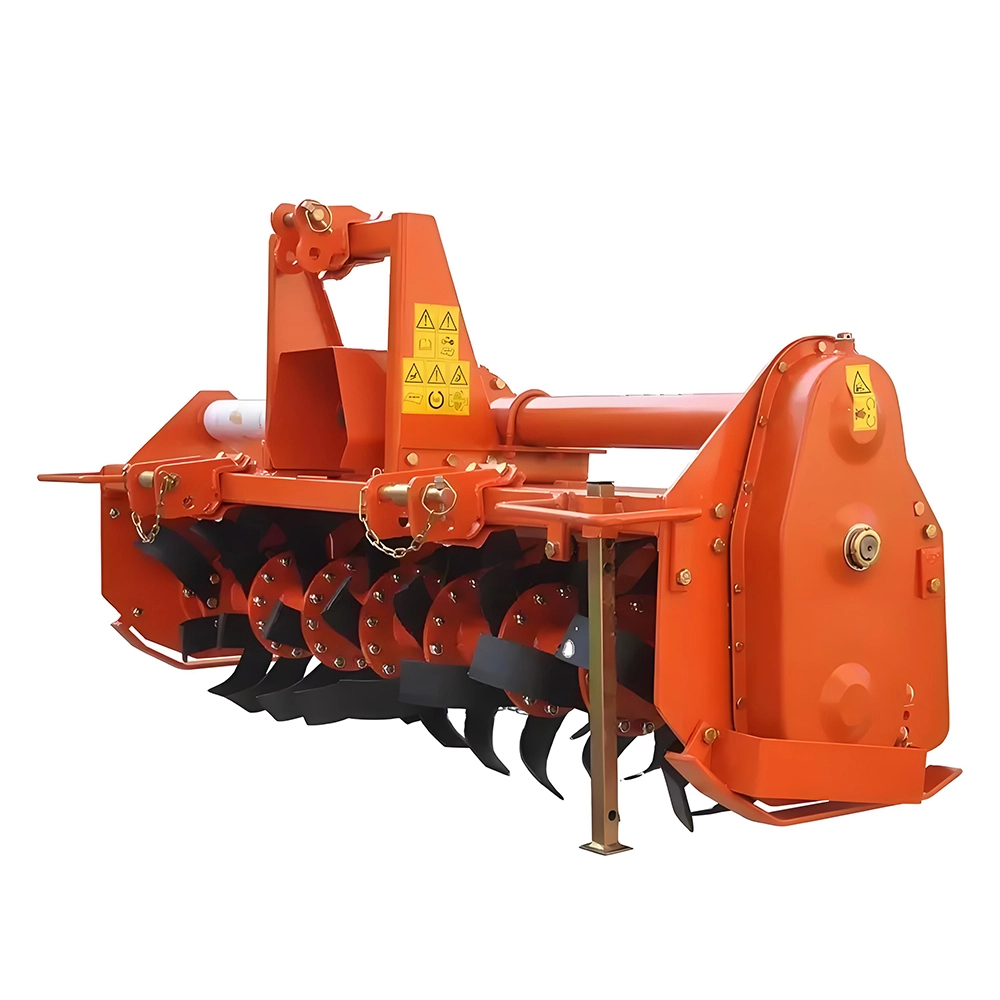

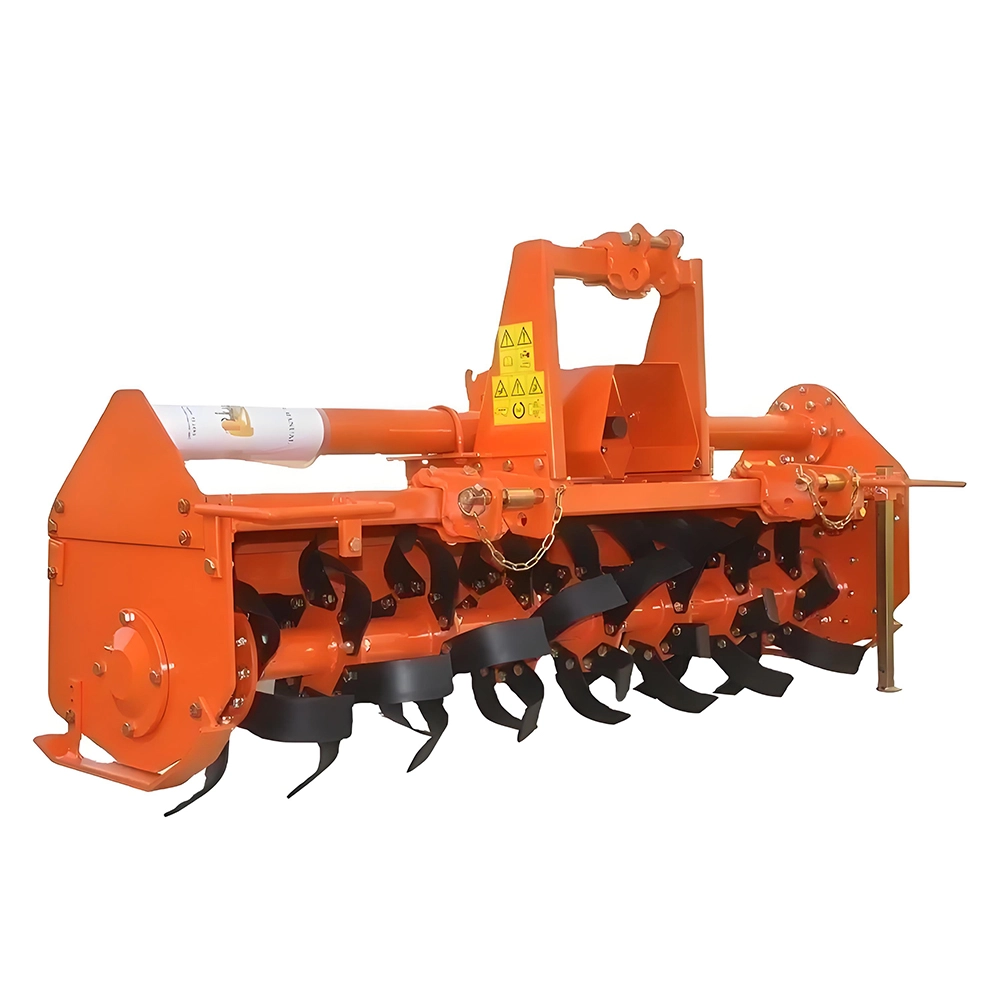

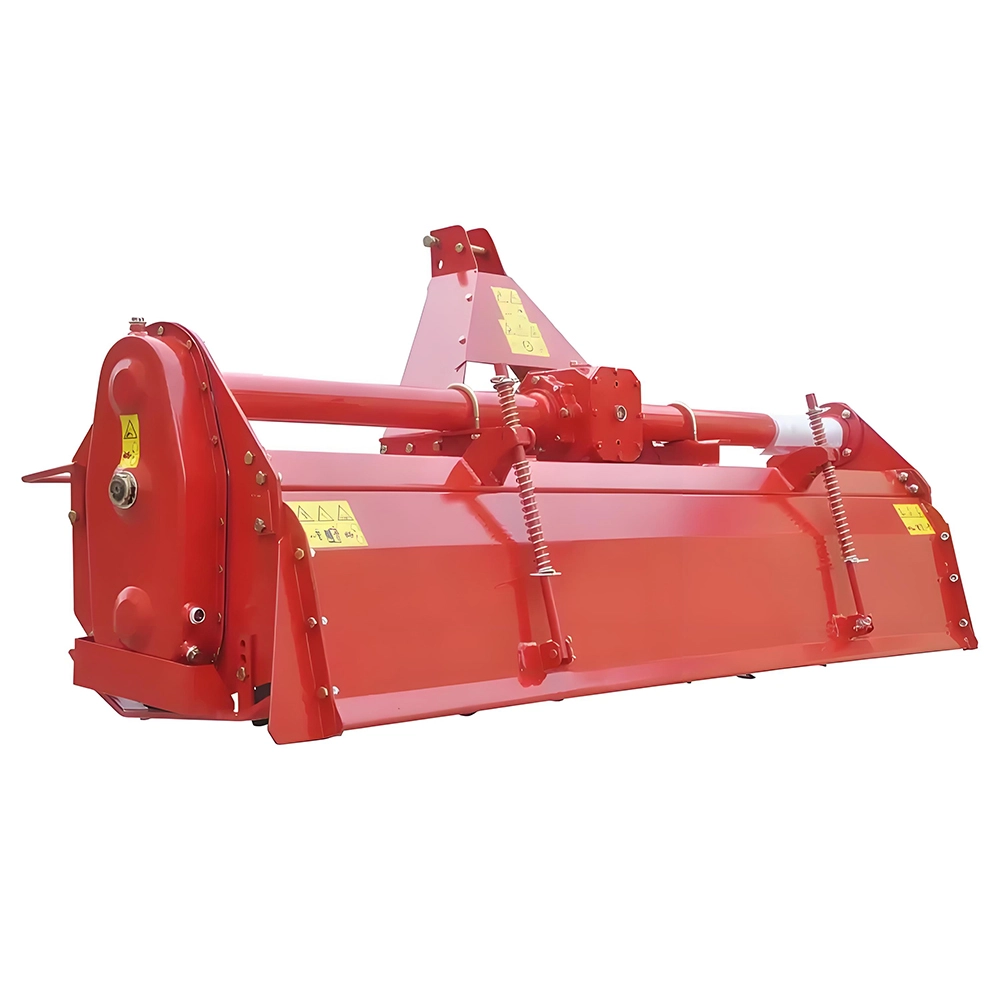

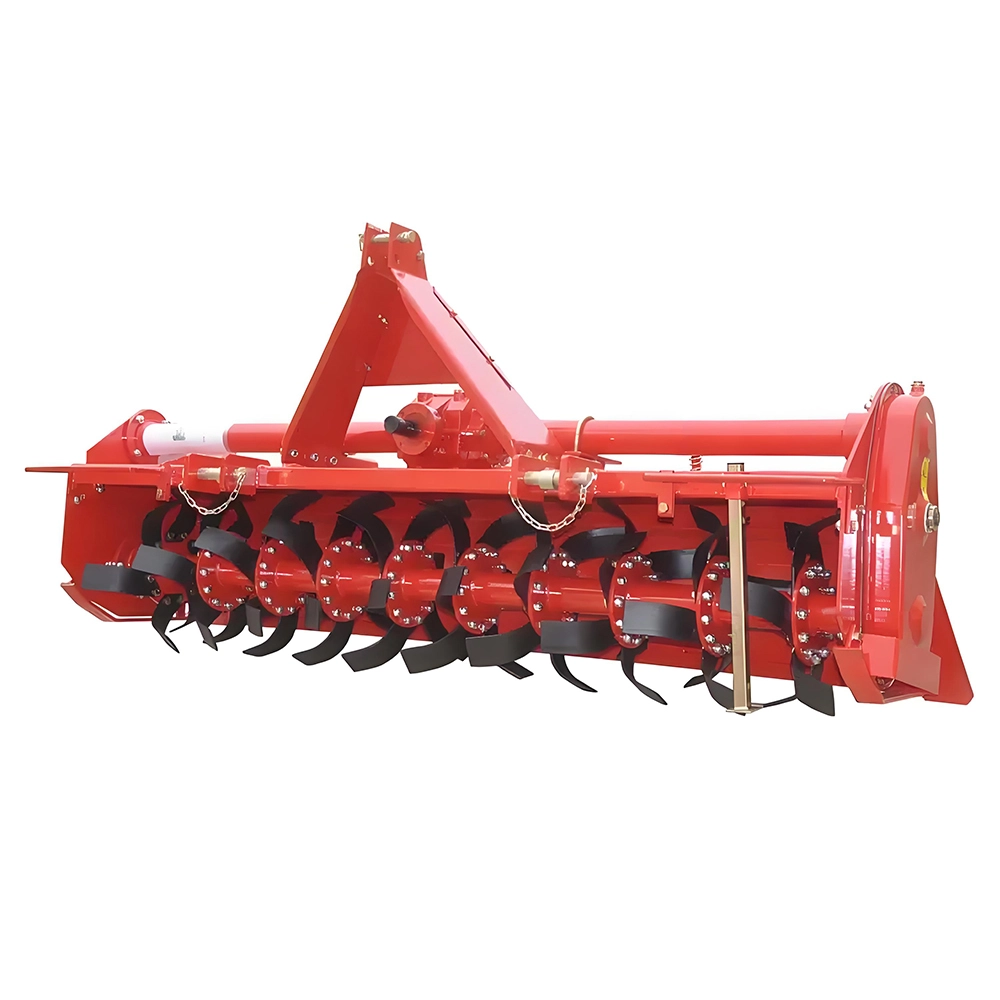

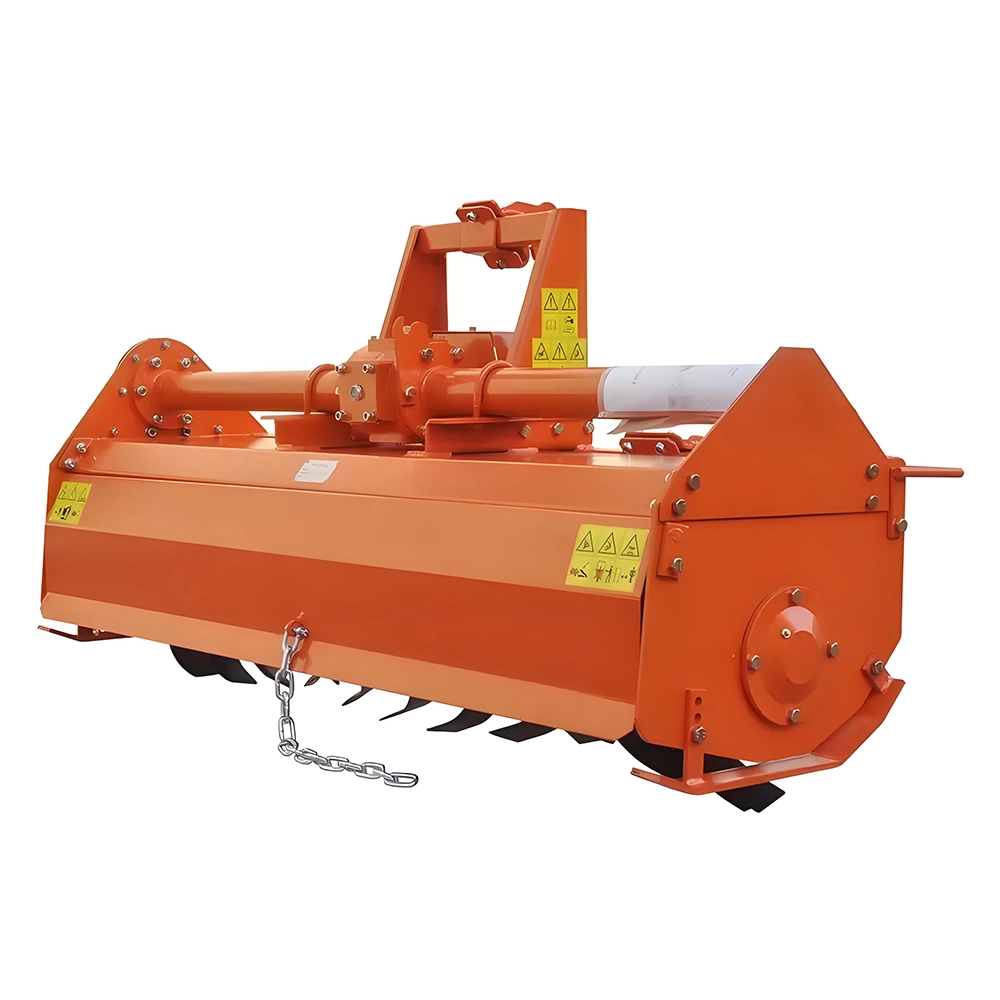

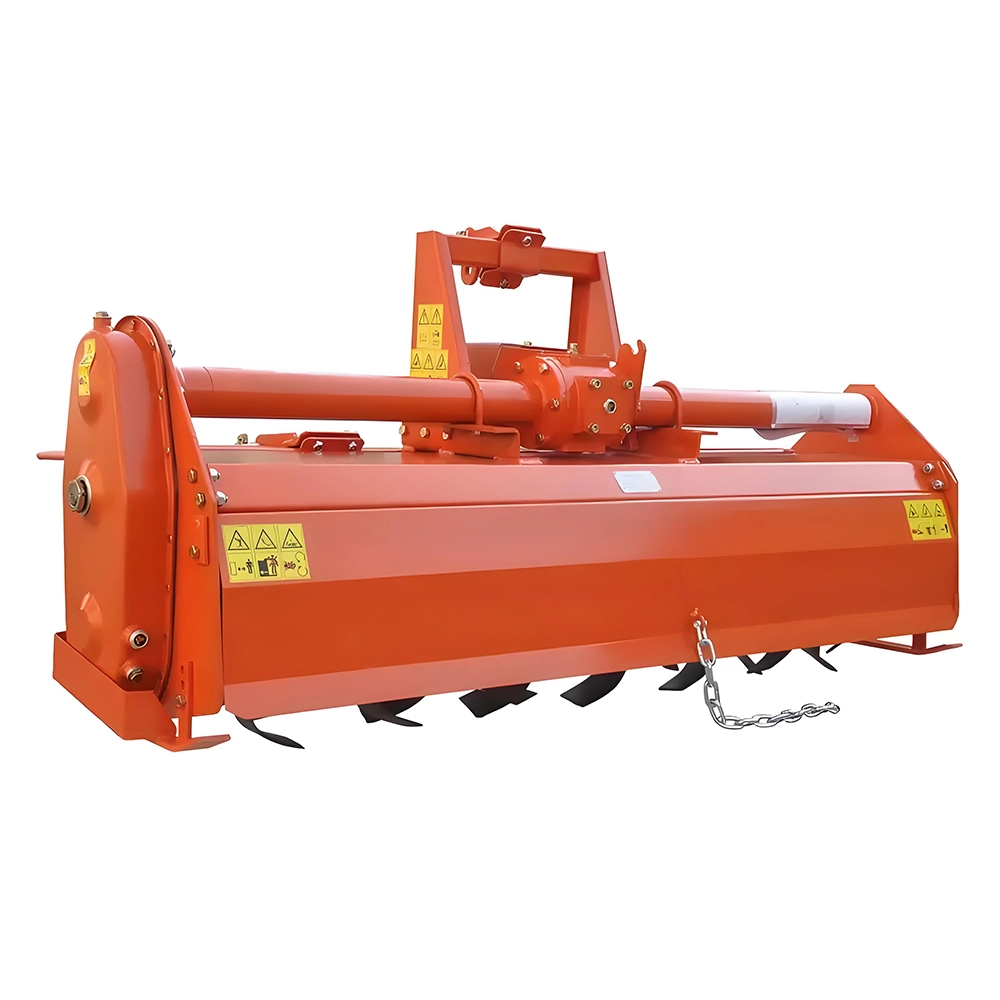

VMRMZ Series Medium Duty Rotary Tiller, Paddy Rotary Tiller

Short Description:

The VMRMZ Series Medium Duty Rotary Tiller is designed for 25-100 HP tractors, offering robust performance for medium to large-scale farming, gardening, and landscaping tasks.


  • Match Power: 25-100 HP
  • Working WIdth: 1200-2400 mm
  • Tilling Depth: 80-140 mm
  • Working Condition: Dry Land & Paddy Land
  • Driving Type: Gear Drived
  • Color: Green, Red, OEM

Content details

VMRMZ Series Medium Duty Rotary Tiller, Paddy Field Rotary Tiller

The VMRMZ Series Medium Duty Rotary Tiller is designed for 25-100 HP tractors, offering robust performance for medium to large-scale farming, gardening, and landscaping tasks. Its durable construction and advanced features make it ideal for efficiently preparing soil across various terrains and conditions.

Specifically designed for 25-100 HP tractors, making it suitable for a wide range of medium to large-sized agricultural machines.

Medium duty design for reliable performance, capable of handling regular farming tasks such as soil cultivation, aeration, and seedbed preparation.

Available in two configurations:4 blades per flange, ideal for general soil preparation.6 blades per flange, perfect for finer soil finishing and enhanced tilling efficiency.

Achieves a maximum working depth of 14cm, ensuring thorough soil penetration and preparation for planting or cultivation.

Operates at a rotary speed of 232 RPM, delivering fast and efficient tilling for consistent results across various soil types.

Comes with CAT I/II 3-point linkage, making it easy to connect to a wide range of tractors, ensuring secure attachment and straightforward operation.

Optionally available with a sealed transmission box, ideal for working in paddy land or other wet conditions, offering enhanced protection and longevity for heavy-duty use.

VMRMZ Series Medium Duty Rotary Tiller


Application

Agriculture: Ideal for medium to large-scale farming, including vegetable farms, orchards, and crop fields.

Paddy Fields: Optional sealed transmission box ensures reliable performance in wet and muddy conditions.

Landscaping: Perfect for preparing soil for landscaping projects, gardens, or flower beds.

Soil Cultivation: Great for breaking up compacted soil, aerating fields, and mixing organic materials or fertilizers into the ground.


VMRM Series Medium Duty Rotary Tiller
4 Blades Rotary Shaft
VMRM Series Medium Duty Rotary Tiller
6 Blades Rotary Shaft
VMRM Series Medium Duty Rotary Tiller
Heavy Duty Gear drived
Technical Parameters
Model Work Width PTO Speed Flanges Blades Tilling Depth Match Power Weight
  cm in RPM Number mm in HP KG
VMRMZ-120 120 47 540 6 24/36 80-140 3-5.5 25-30 242/257
VMRMZ-130 130 51 540 7 28/42 80-140 3-5.5 30-35 252/267
VMRMZ-140 140 55 540 7 28/42 80-140 3-5.5 30-35 259/274
VMRMZ-150 150 59 540 8 32/48 80-140 3-5.5 35-40 269/284
VMRMZ-160 160 63 540 8 32/48 80-140 3-5.5 40-45 274/289
VMRMZ-170 170 67 540 9 36/54 80-140 3-5.5 45-50 281/299
VMRMZ-180 180 71 540 9 36/54 80-140 3-5.5 50-55 288/306
VMRMZ-190 190 75 540 10 40/60 80-140 3-5.5 55-60 298/318
VMRMZ-200 200 79 540 10 40/60 80-140 3-5.5 60-65 308/328
VMRMZ-210 210 82 540 11 44/66 80-140 3-5.5 65-70 320/342
VMRMZ-220 220 86 540 11 44/66 80-140 3-5.5 70-80 335/357
VMRMZ-230 230 90 540 12 48/72 80-140 3-5.5 80-90 350/374
VMRMZ-240 240 94 540 12 48/72 80-140 3-5.5 90-100 365/389
VMRMZ Series Medium Duty Rotary Tiller

STANDARD

  • Normal Cat.1 PTO Shaft 6-6 Spline

OPTIONS

  • Clutch-Type Cat.1 PTO Shaft 6-6 Spline
