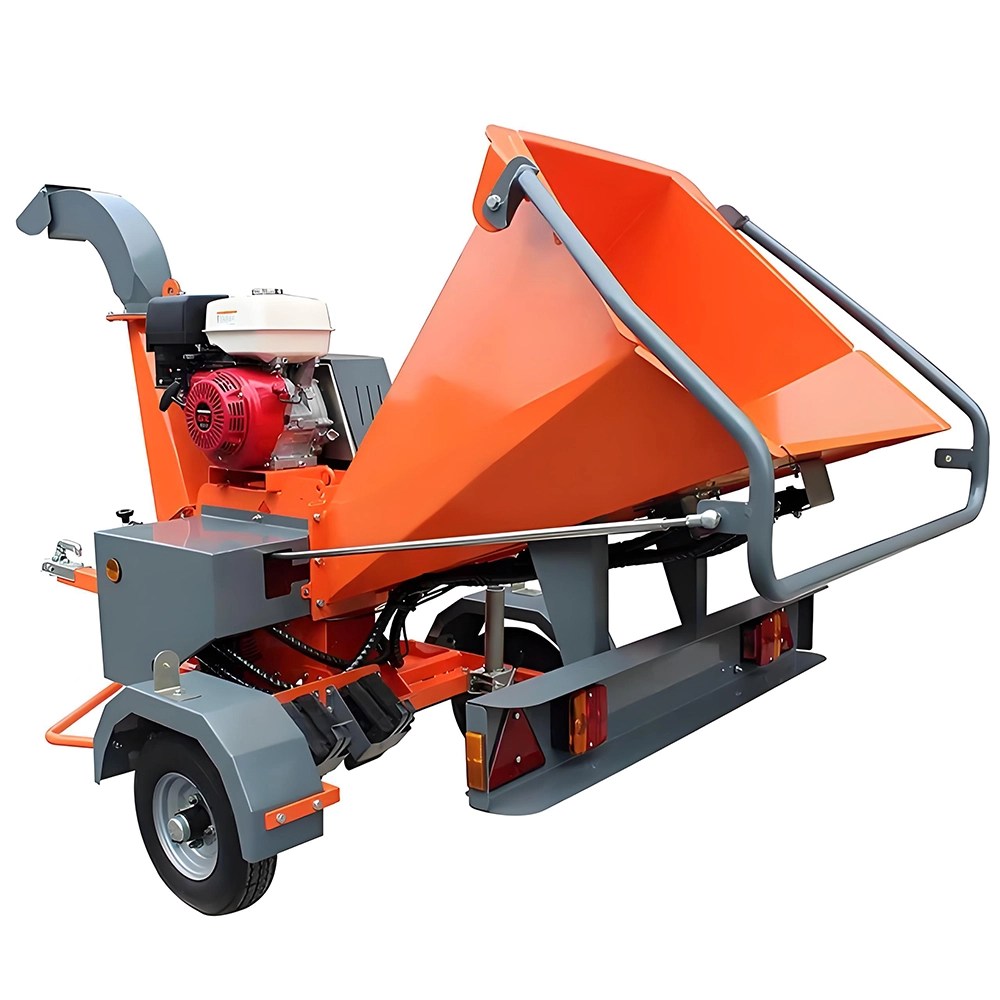

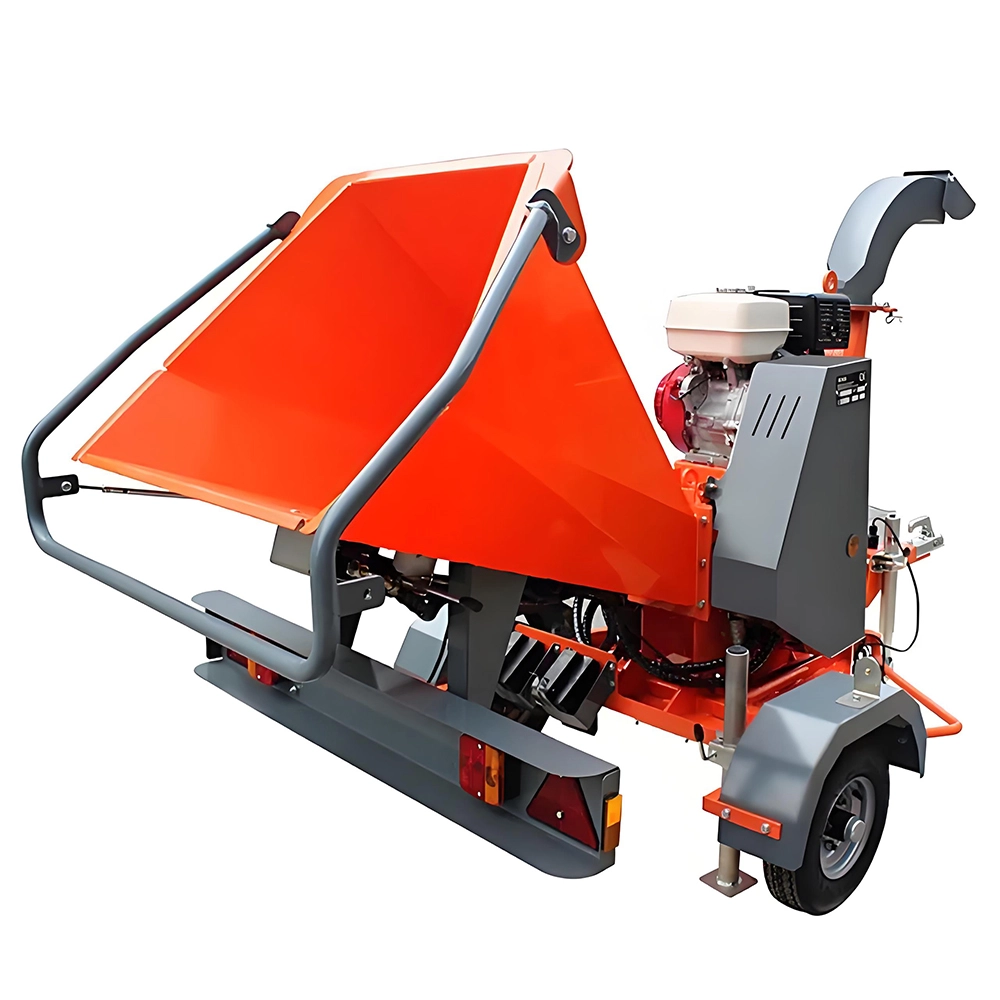

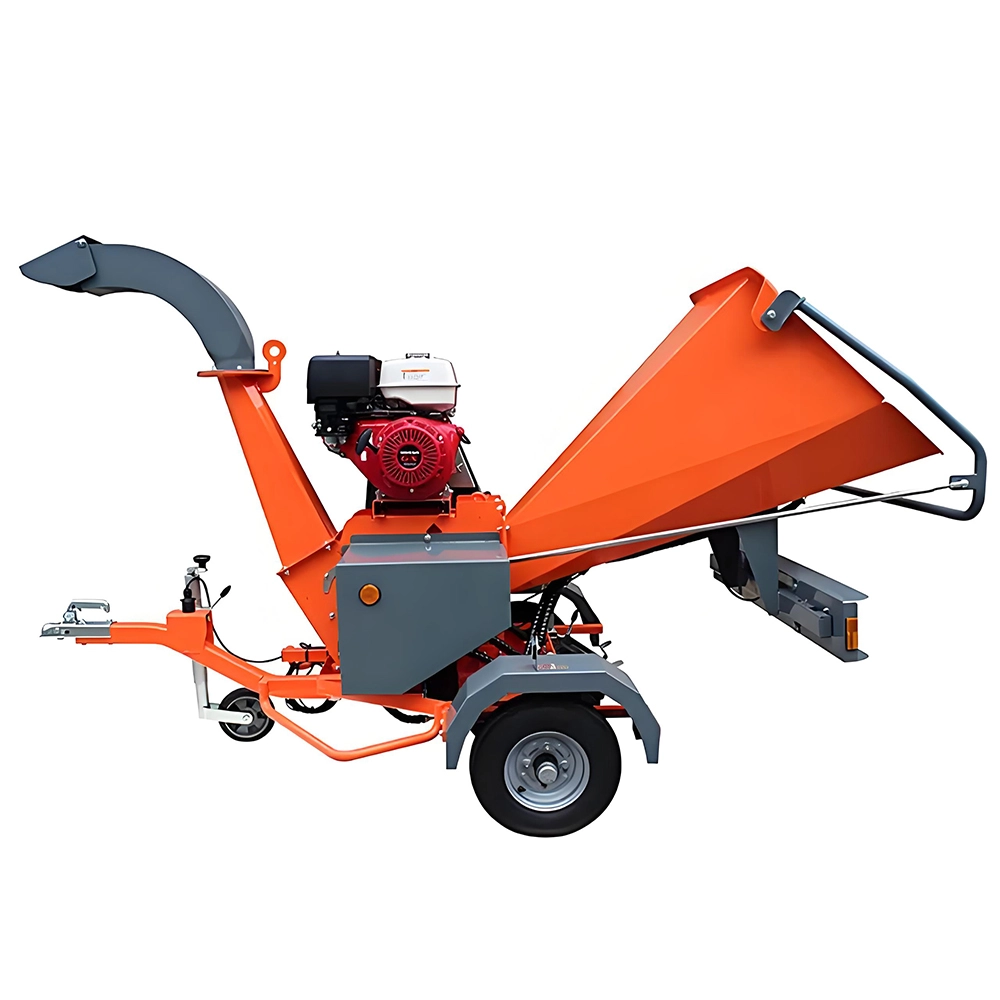

VMPWL-100 ATV and UTV Engine Powered Wood Chipper
VMPWL-100 ATV and UTV Engine Powered Wood Chipper
The VMPWL-100 is a compact yet powerful wood chipper designed for maximum efficiency in agricultural, forestry, and landscaping tasks. Powered by either a 13 HP Honda engine or a 13.5 HP Briggs & Stratton (B&S) engine, this chipper delivers reliable, high-performance operation in even the most demanding environments. Its unique rotor with knives shredding design sets it apart from traditional flywheel chippers, providing superior chipping efficiency and smoother operation.
Equipped with a robust 13 HP Honda or 13.5 HP Briggs & Stratton (B&S) engine, ensuring consistent power and excellent fuel efficiency for long working hours.
Features a quick hitch draw bar for easy attachment to tractors, ATVs, or utility vehicles, enhancing mobility across various terrains.
Heavy-duty agricultural field tires provide excellent stability and traction, making the chipper easy to tow and maneuver in rough field conditions.
The adjustable discharge chute rotates 360 degrees, allowing you to direct the wood chips exactly where needed, whether into a trailer, pile, or spread over the ground.
A spacious 6" x 8" in-feed opening accommodates larger branches and reduces the need for pre-cutting, improving efficiency and saving time.
Unlike traditional flywheel designs, the innovative rotor with knives provides more aggressive shredding action, delivering finer and more uniform wood chips while reducing clogging and vibration.
Capable of handling branches up to 3.5 inches in diameter, making it perfect for light to medium-duty chipping tasks.
Built with high-quality materials for durability and designed for easy maintenance, ensuring long-term reliability and reduced downtime.
Application
Ideal for farms, orchards, landscaping, forestry operations, and municipal clearing projects.
Model | VMPWL100 | |
---|---|---|
Engine/Motive power | HP | 13hp Honda or 13.5hp B&S |
Max diameter of wood chips | mm | Φ90mm |
No.of hammers on Rotor | 8 | |
No.of blades on Rotor | 2 | |
Hourly production | m³ | 7 |
Length | mm | 2715 |
Width | mm | 1230 |
Height | mm | 1690 |
Feeding height | mm | 1000 |
In-feed opening | 6" x 8" | |
Weight | Kg | 335kgs |

STANDARD
- Normal Cat.1 PTO Shaft 6-6 Spline
OPTIONS
- Clutch-Type Cat.1 PTO Shaft 6-6 Spline
