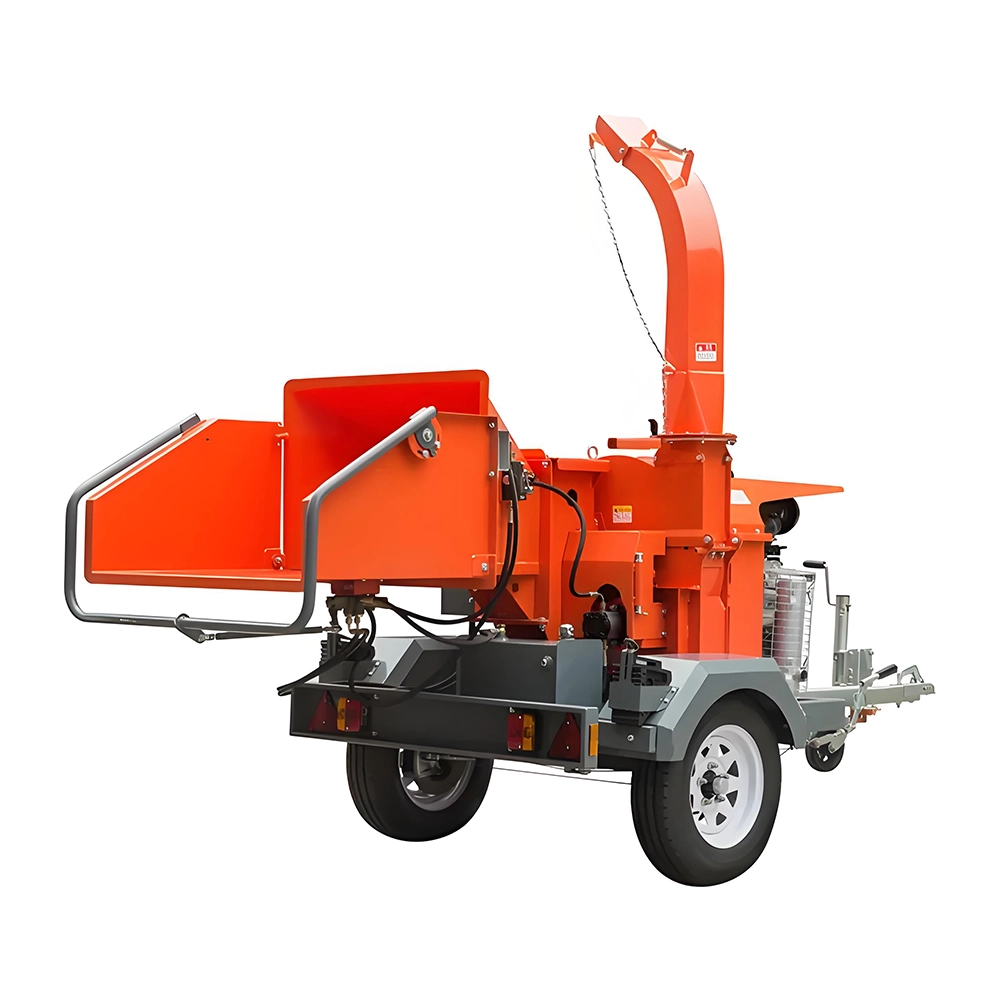

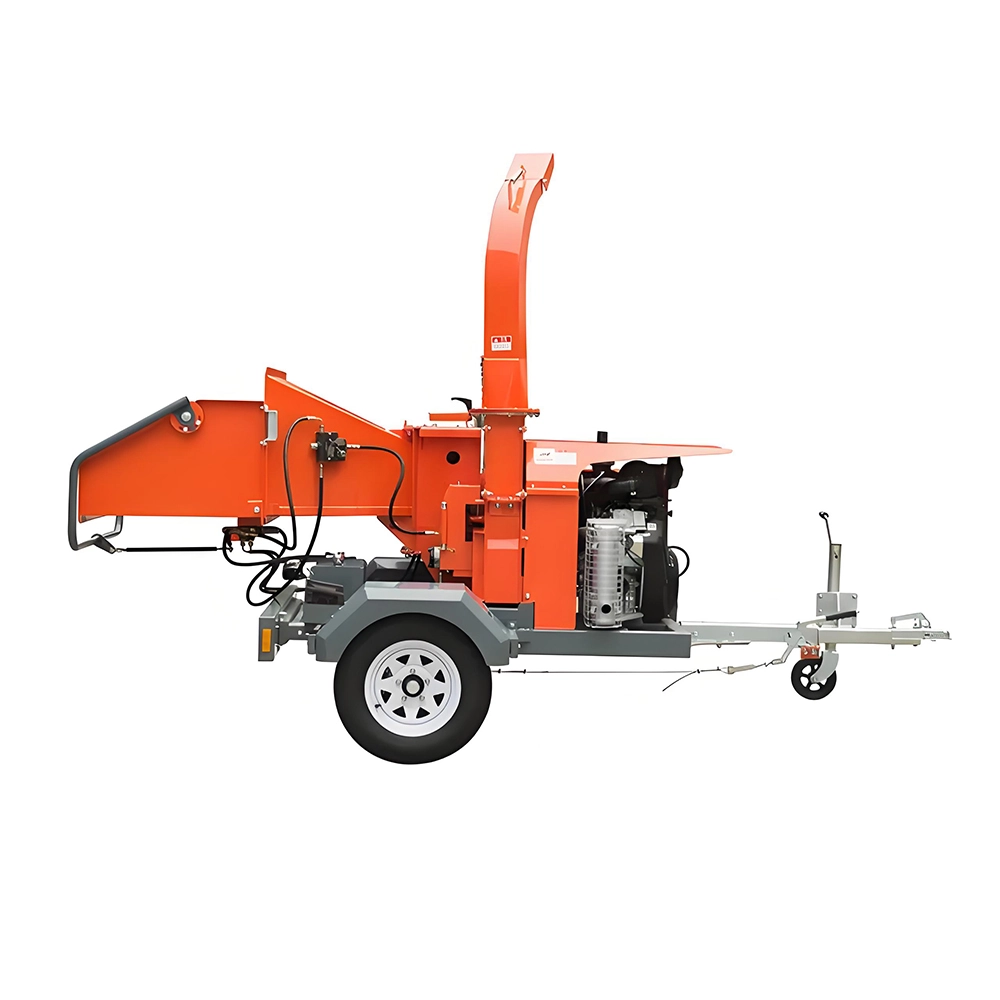

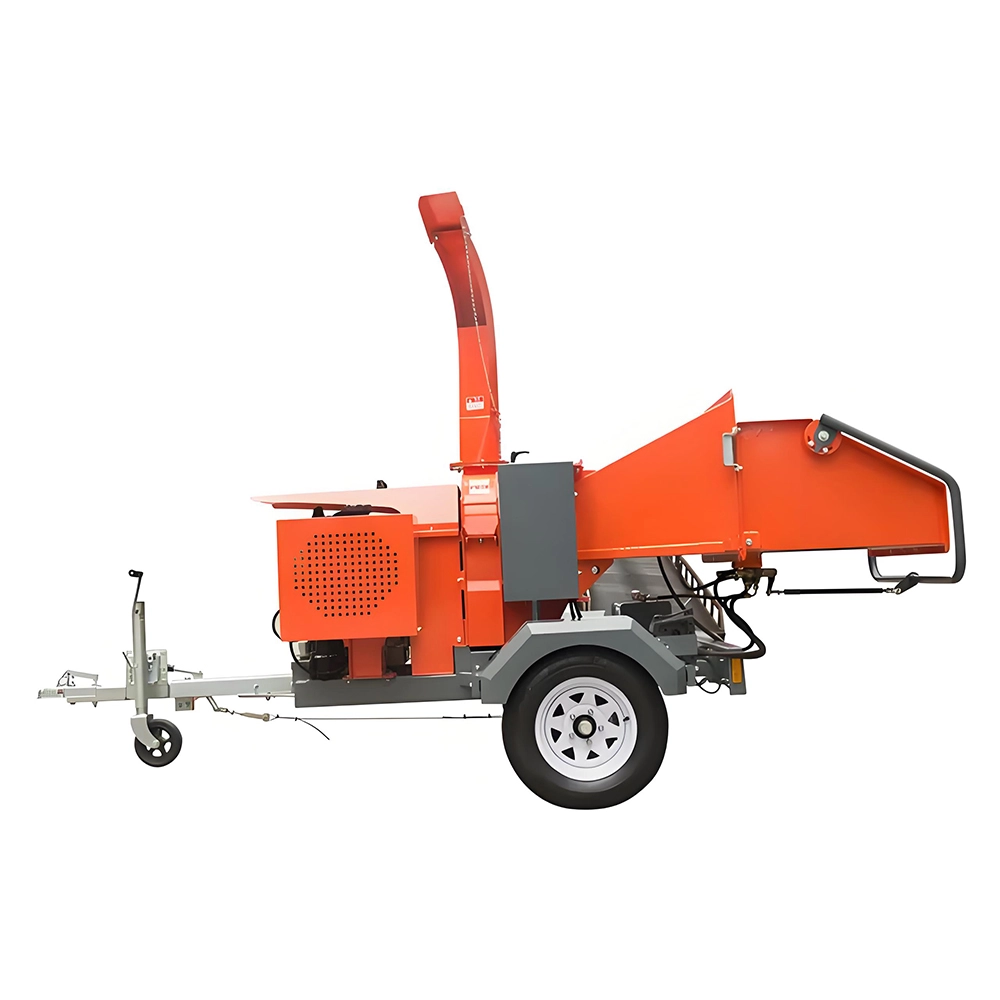

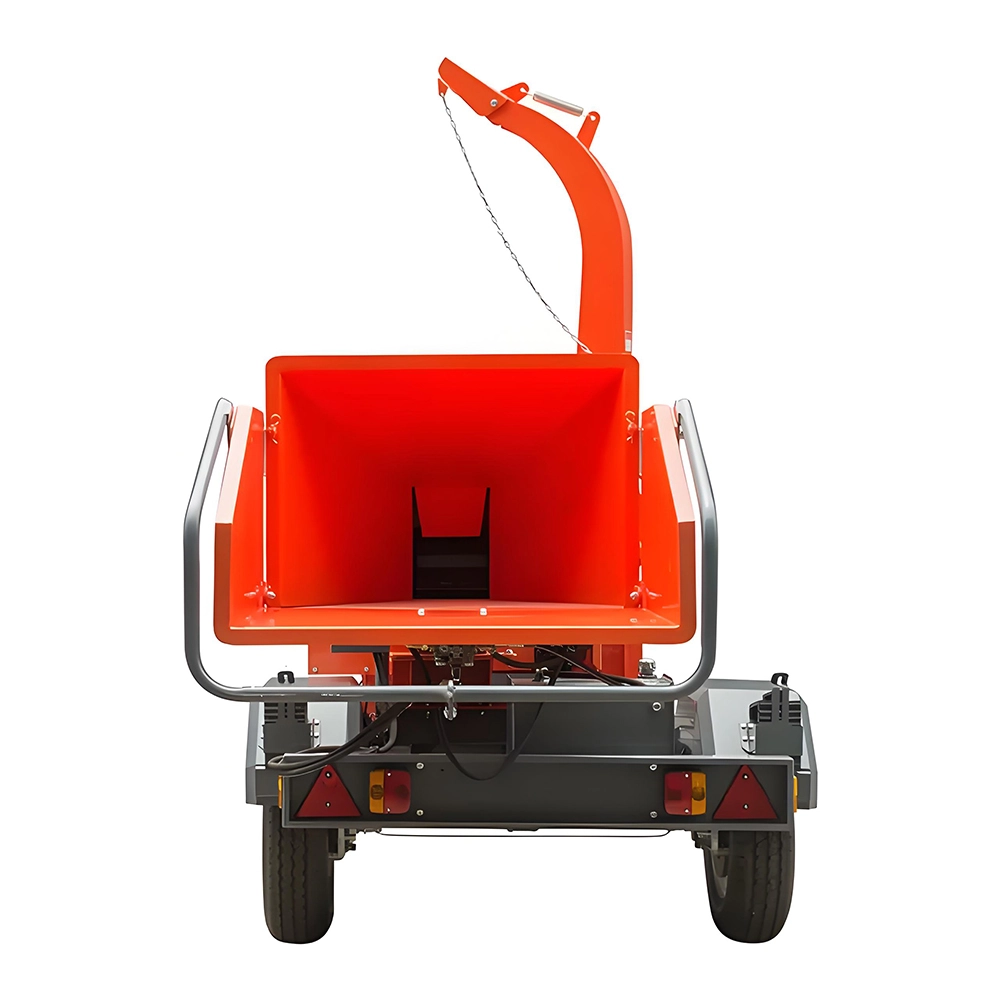

VMPWH160 ATV UTV Pulling Engine Powered Wood Chipper

Short Description:

VMPWH160 wood chipper with 31 HP engine, 7 gallon fuel tank, durable flywheel, hydraulic control roller, quick hitch drawbar, Suit for ATV UTV and Pickup


  • Suit: ATV UTV Truck
  • Engine Type: 31 HP Gasoline Petrol

Content details

VMPWH160 ATV UTV Pulling Engine Powered Wood Chipper

The VMPWH160 is a heavy-duty wood chipper powered by a robust 31 HP Briggs & Stratton (B&S) engine, designed to deliver exceptional chipping performance for demanding agricultural, forestry, and landscaping tasks. With a large 7-gallon fuel tank, it supports extended operation without frequent refueling. Its durable flywheel, hydraulic control roller, and quick hitch drawbar make this machine efficient, stable, and easy to operate, even in the toughest conditions.

Extended fuel capacity allows for long working hours without frequent refueling, ideal for large-scale projects.

A heavy-duty flywheel ensures stable, smooth operation with increased momentum, providing more powerful chipping while reducing vibration.

The hydraulic feed roller enables easy adjustment of feed speed, improving efficiency when processing different wood types and sizes.

Equipped with a quick hitch drawbar for effortless towing behind tractors or utility vehicles, enhancing mobility across rugged terrain.

The discharge chute can be rotated 360 degrees, allowing you to direct wood chips precisely where needed, reducing cleanup time.

Features a spacious 8” x 8” in-feed opening, capable of handling bulky branches without the need for pre-cutting.

VMPWH160 ATV UTV Pulling Engine Powered Wood Chipper


Technical Parameters
Model VMPWH160
Engine 31HP Electric start
Fuel tank capacity 7 Gal / 26L
Traction type Ball hitch(2" )
Tires size 165/70R13 79N  (DOT/ EMAK certification)
Wheel Base 39.3" / 1000mm
Dimensions(L×W×H) 134" x 51" x 89"
3400 x1300 x2270mm
(110" x51" x89" when feed bucket folded)
Total Weight 1256lbs / 570kgs
Fly wheel Weight 160lbs / 73kgs
Fly wheel Diameter 24.8" / 630mm
Chip Max Diameter 6" / 152mm
Chipper Capacity 5-10m³/h
Feeding System Hydraulic ( single roller)
Transmission type Clutch + belts
NO. of Fly Knives 2 pcs
No. of Fixed knives 1pc
Feed bucket open size 8" x8"
Discharge Hood Height 89" / 2270mm
Rated RPM 1700
VMPWH160 ATV UTV Pulling Engine Powered Wood Chipper
