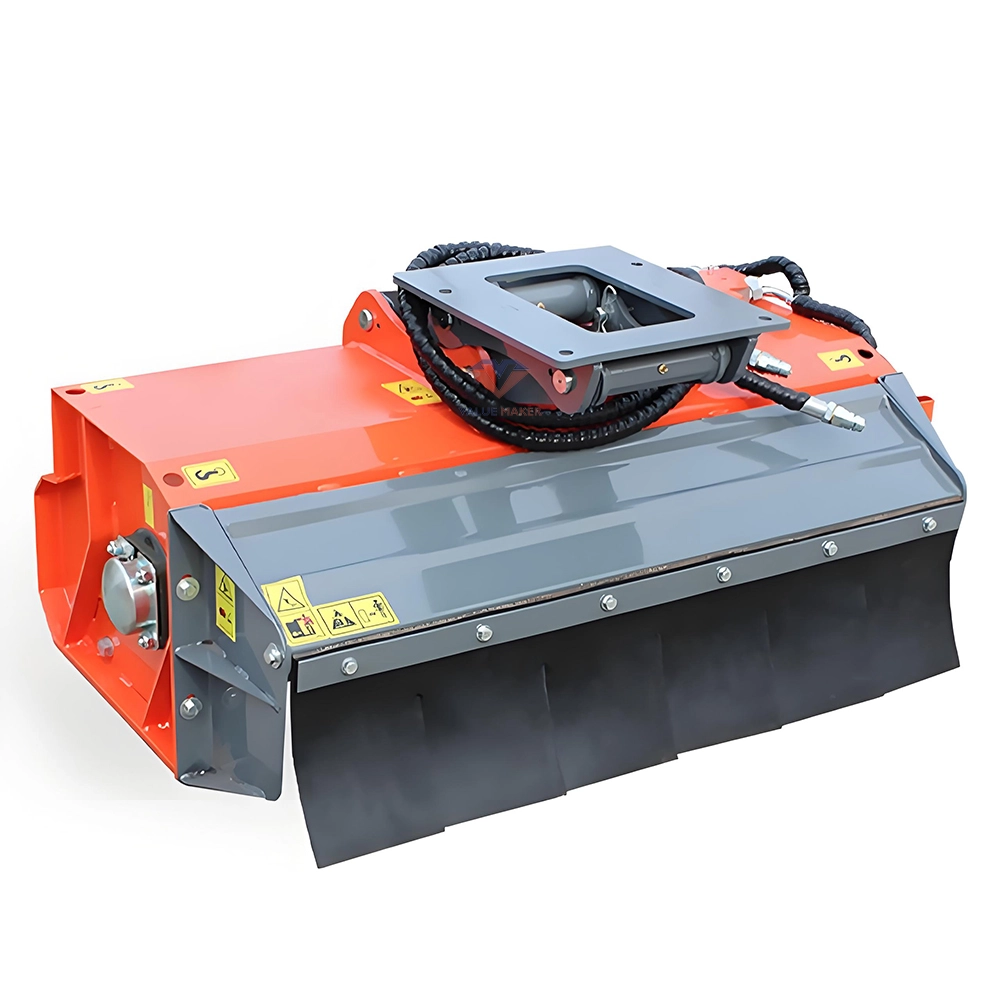

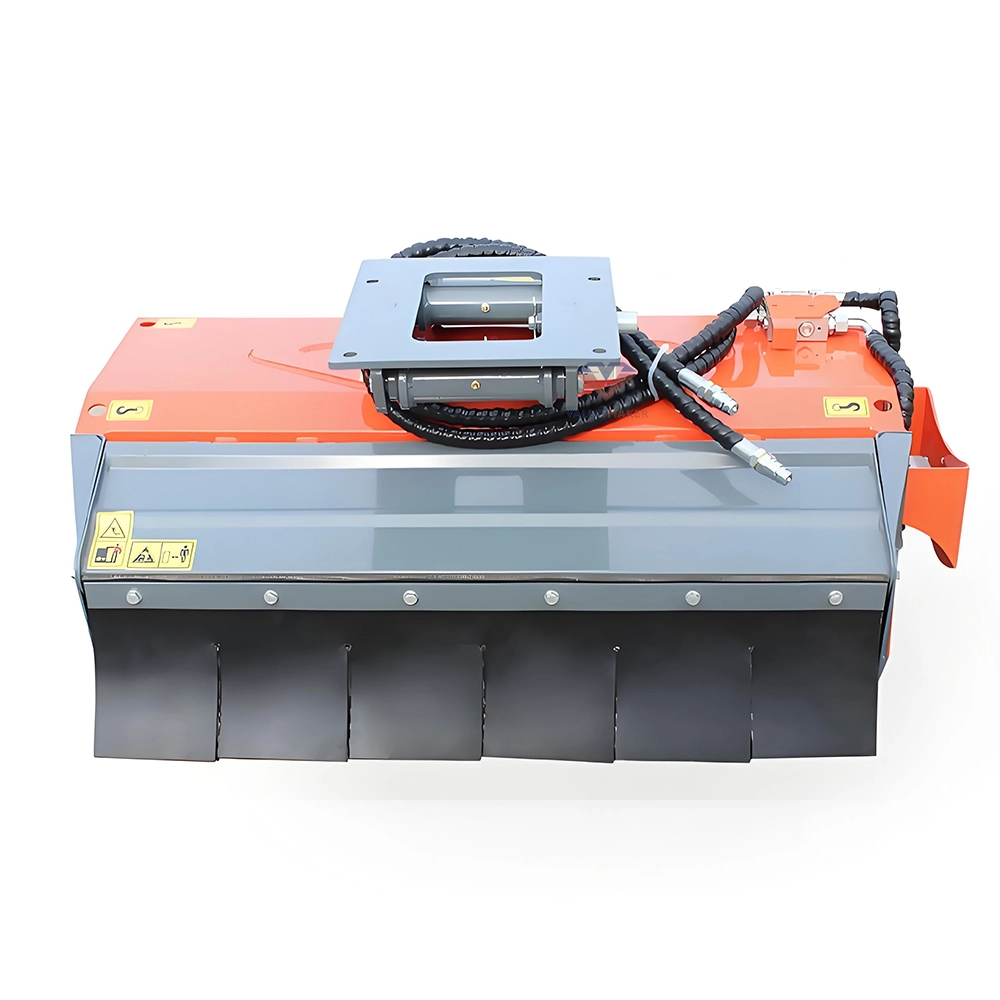

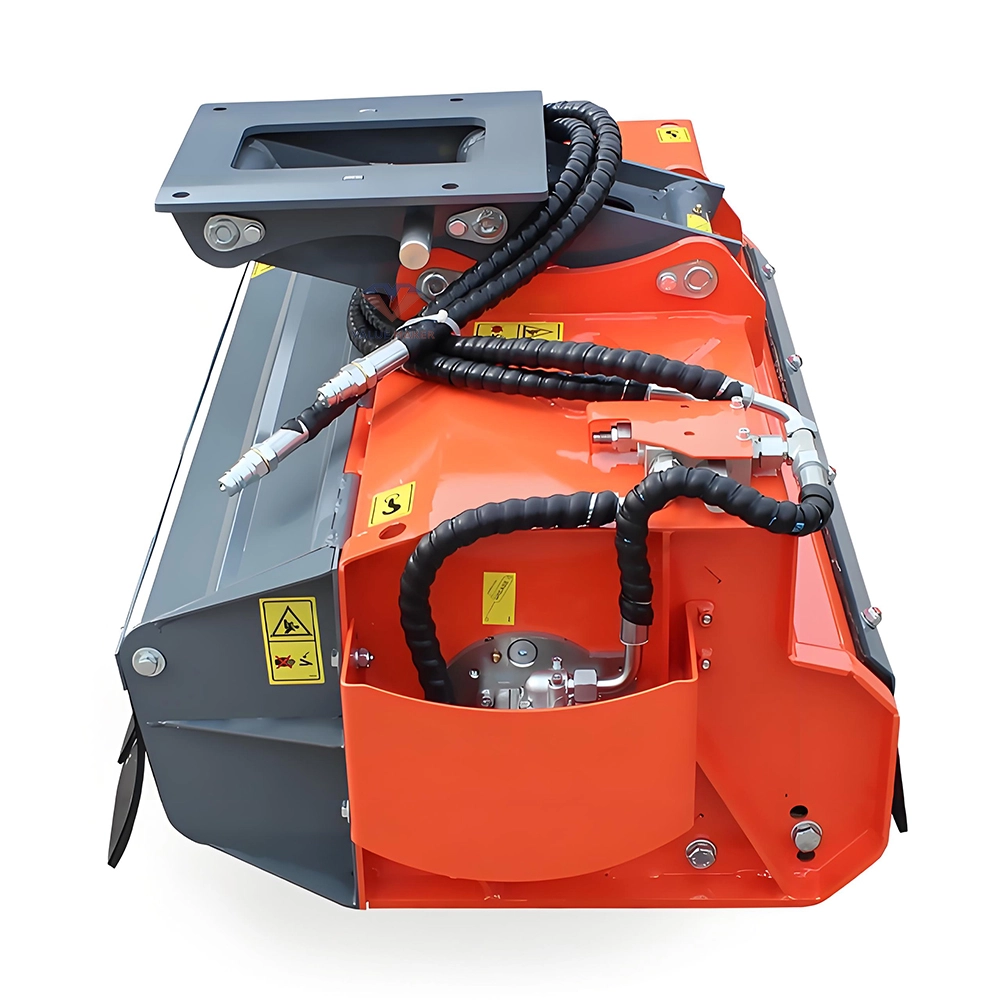

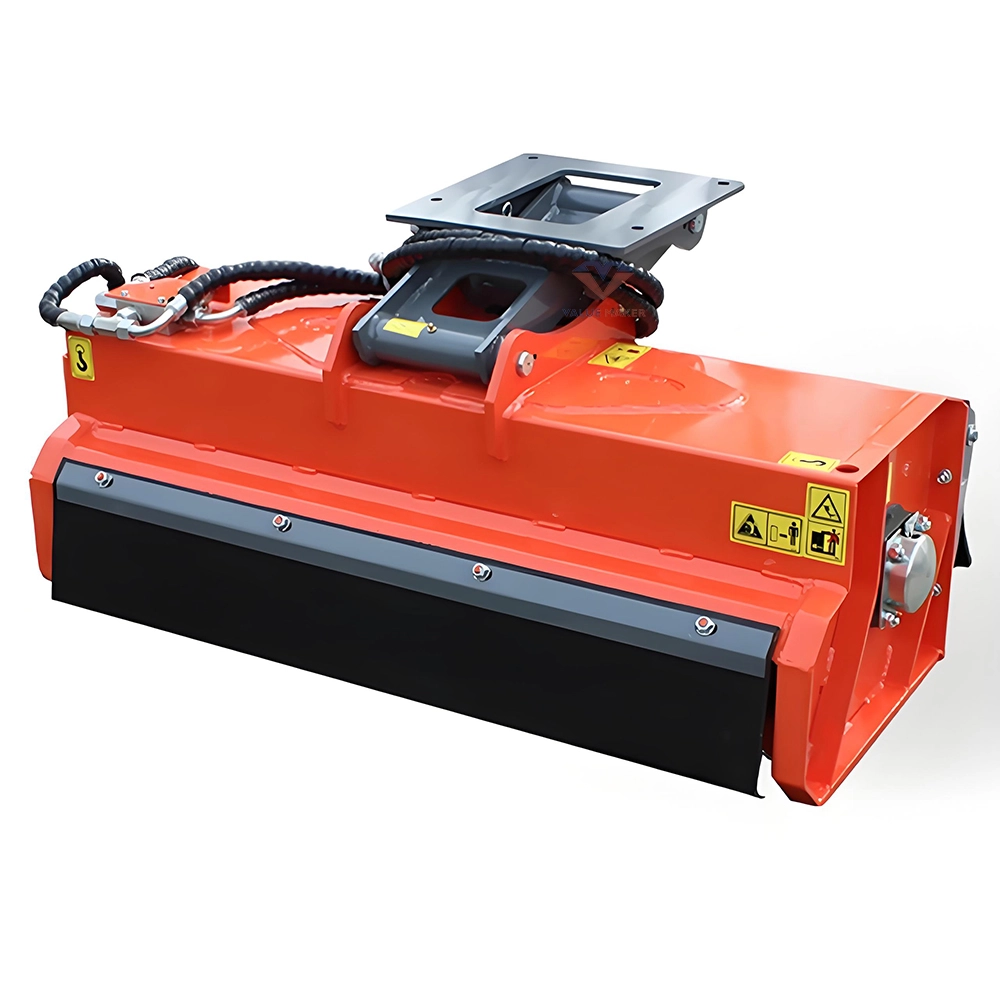

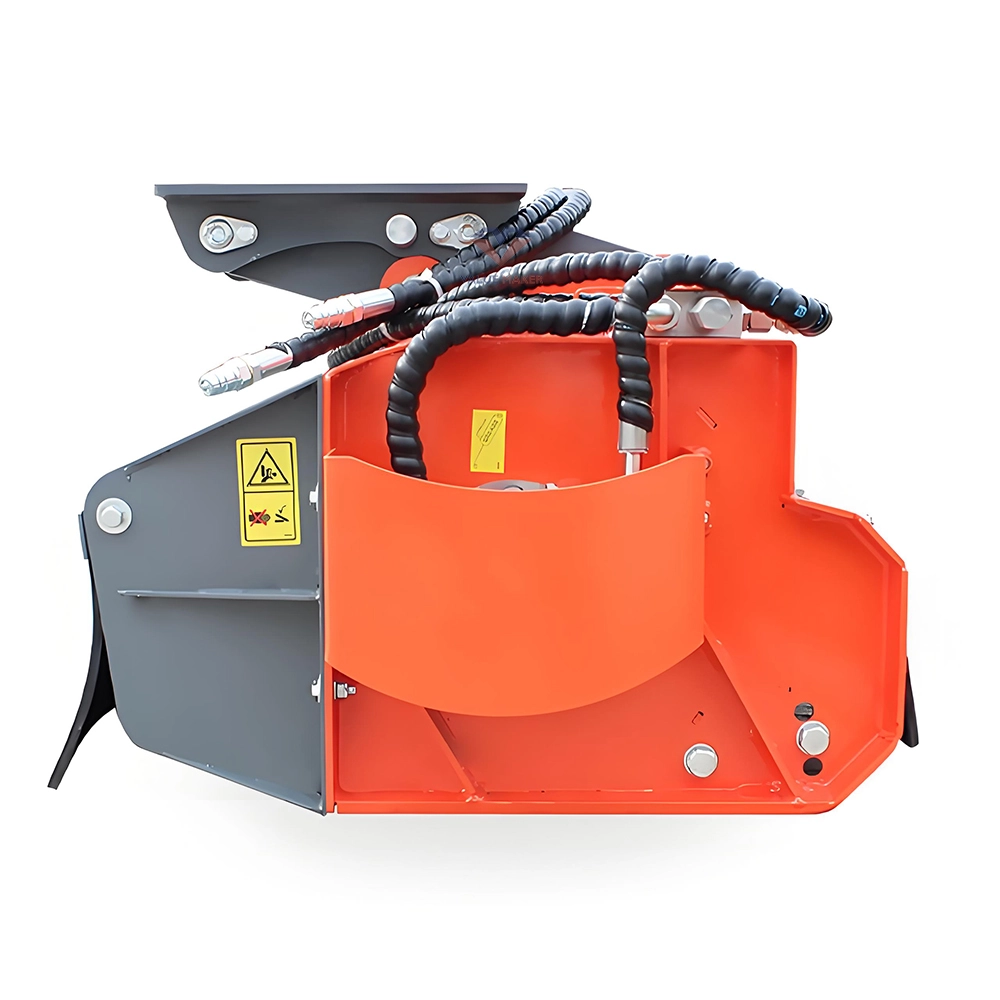

The VMMR 85/105 Light Hydraulic Flail Heads are versatile attachments designed for light-duty applications. They are compatible with various excavators, making them ideal for mowing, clearing, and maintenance tasks in gardens, shrublands, lawns, and agricultural areas.

Key Features:

Reinforced Frame:Built with internal and external reinforcements for enhanced durability and long service life.

Self-Leveling Mechanism:Equipped with a parallelogram self-leveling device that adapts to terrain changes. It also features a mechanical lock for specific operational needs.

Hydraulic Components:Pressure Relief and Anti-Cavitation Valve: Protects the hydraulic system. 3-Way Flow Control Valve: Pressure-compensated for stable output flow, calibrated to match motor speeds with precision. Hydraulic Pipes Protection: Spiral protection (1.6m) for added durability.

Hydraulic Gear Motor:Imported Italian brand with high working pressure (up to 30 bar). High-speed operation (3500rpm) with advanced shaft seal design for high-temperature resistance and reduced oil leakage.

Direct Drive System:The hydraulic motor directly drives the cutter shaft for compact, efficient mowing performance.

Adjustable and Protective Features:Rear adjustable roller for precision cutting height control. Abrasion-resistant rubberized front and rear protections for safety and durability.

Connector Floating Device:Four-bar linkage mechanism allows the mowing head to float with the terrain, preventing damage and ensuring consistent mowing. Lockable for straight work when pruning or fence branch trimming.

Bearings:The mower shaft rotary support bearing uses imported SKF bearings for enhanced load capacity, reduced noise, and extended service life.
