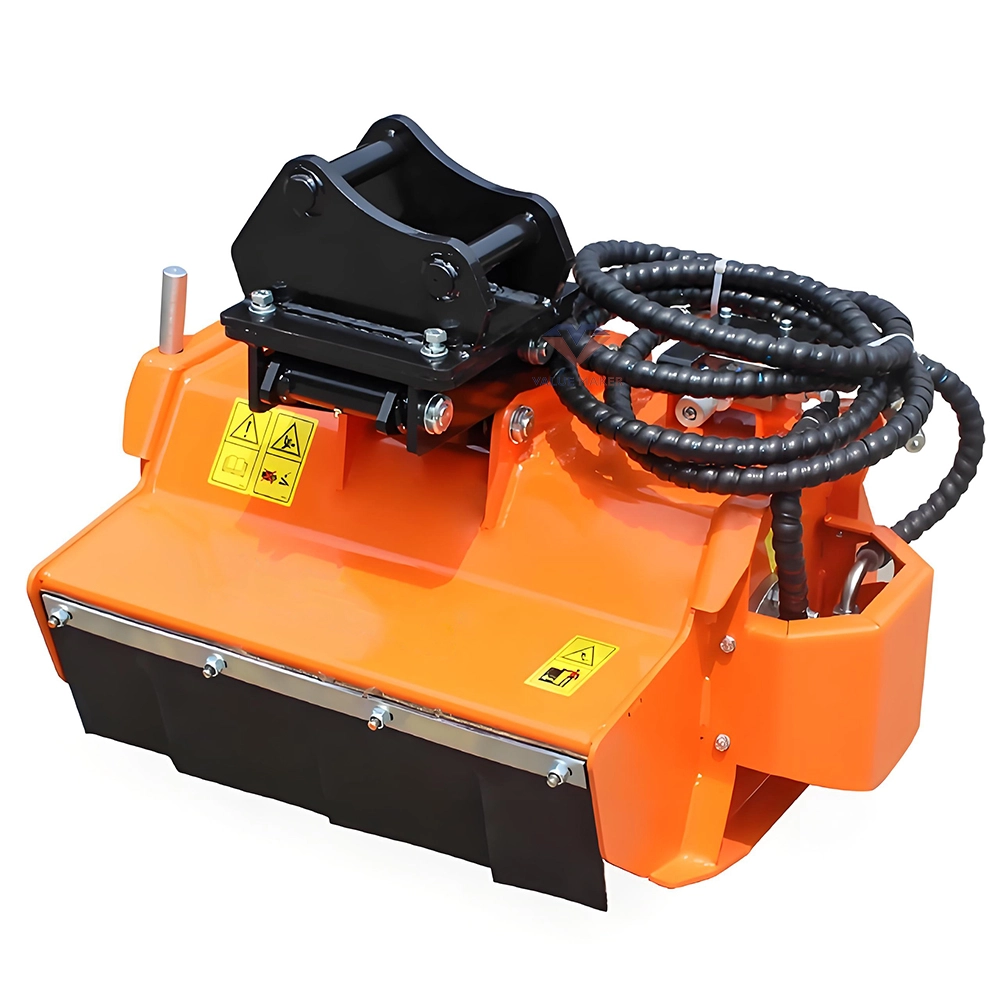

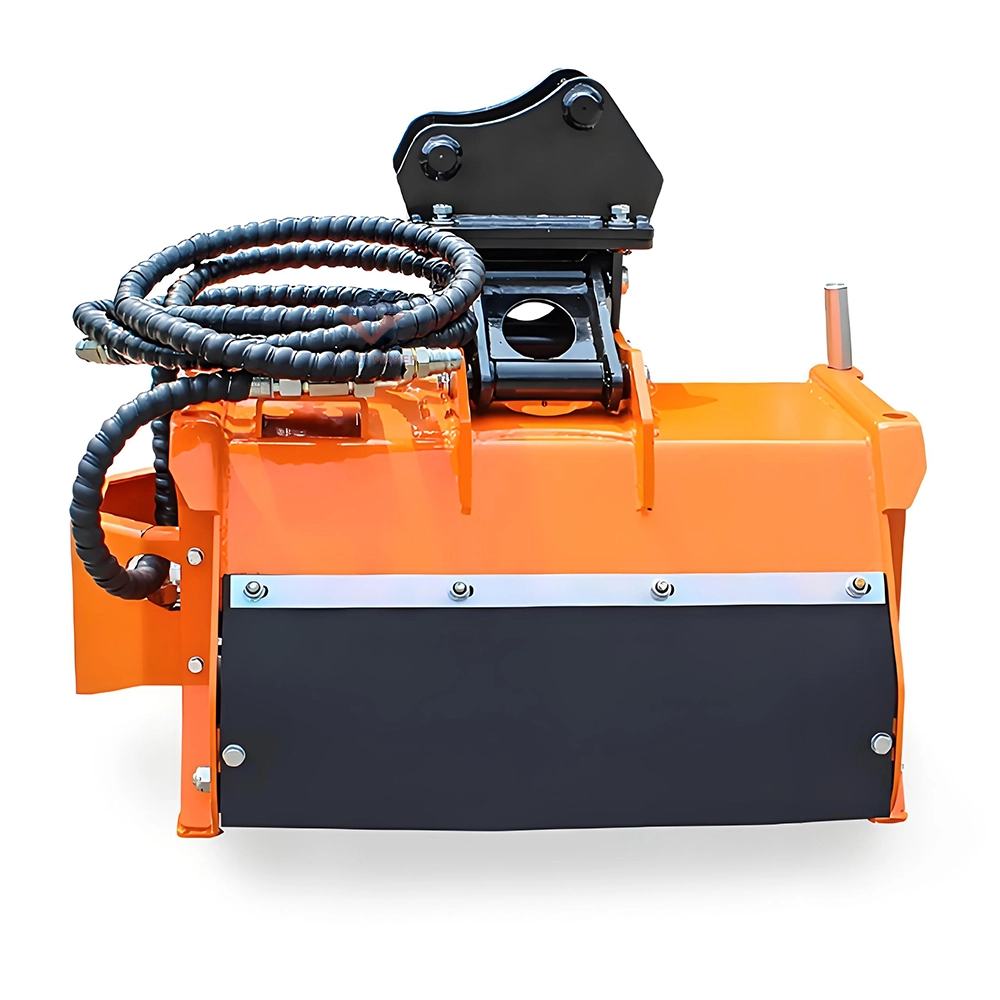

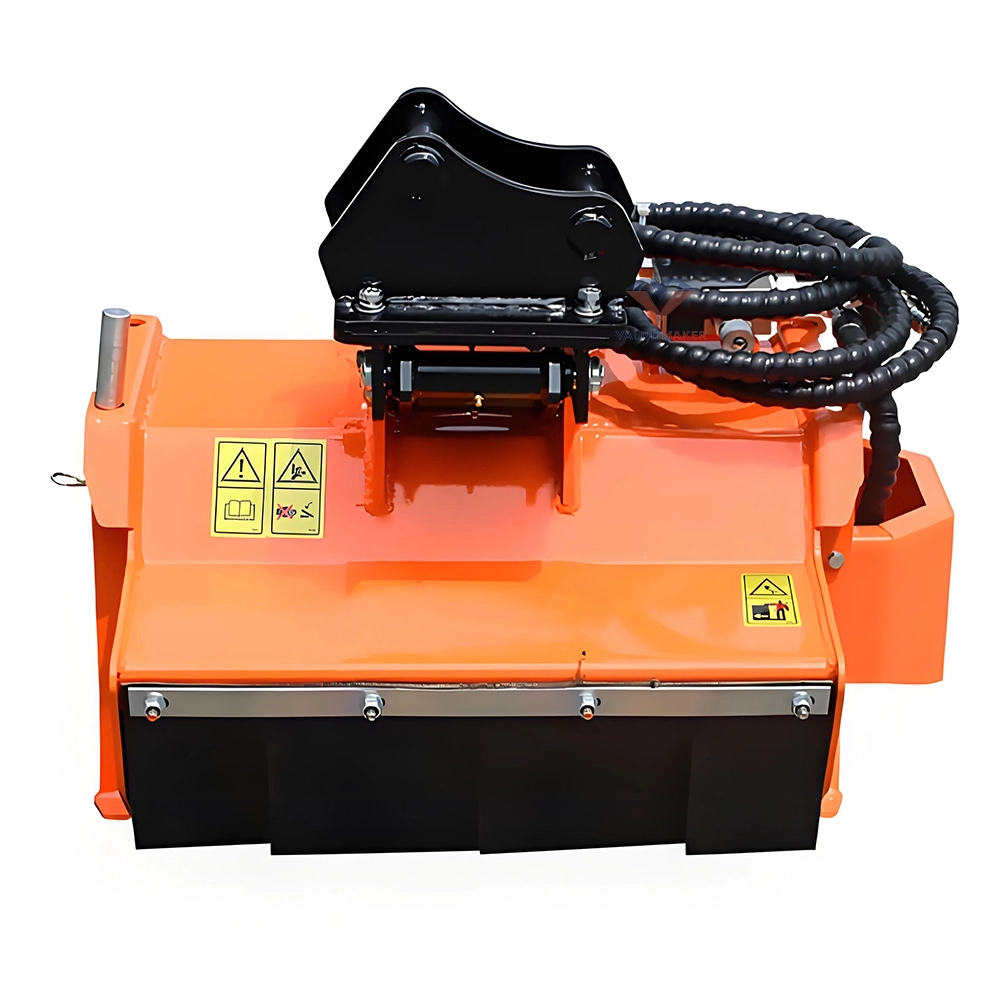

The VMMH Series Excavator Flail Mower is a robust and versatile attachment designed for mowing and weeding in gardens, shrublands, and irrigation environments. Compatible with excavators of various sizes and tonnages, this flail mower ensures efficient performance across diverse terrains.

Key Features:

Reinforced Frame:Internal and external reinforcements enhance durability and reliability.

Self-Leveling Mechanism:Equipped with a parallelogram device that self-levels during operation and can be mechanically locked when needed.

Hydraulic Components:Pressure Relief and Anti-Cavitation Valve: Protects the hydraulic system. 3-Way Flow Control Valve: Pressure-compensated for stable output flow, calibrated to match motor speeds with precision. Hydraulic Pipes Protection: Spiral protection (1.6m) for added durability.

Hydraulic Gear Motor:Imported Italian brand with high working pressure (up to 30 bar). High-speed operation (3500rpm) with advanced shaft seal design for high-temperature resistance and reduced oil leakage.

Direct Drive System:The hydraulic motor directly drives the cutter shaft for compact, efficient mowing performance.

Adjustable and Protective Features:Rear adjustable roller for precision cutting height control. Abrasion-resistant rubberized front and rear protections for safety and durability.

Connector Floating Device:Four-bar linkage mechanism allows the mowing head to float with the terrain, preventing damage and ensuring consistent mowing. Lockable for straight work when pruning or fence branch trimming.

Bearings:The mower shaft rotary support bearing uses imported SKF bearings for enhanced load capacity, reduced noise, and extended service life.
