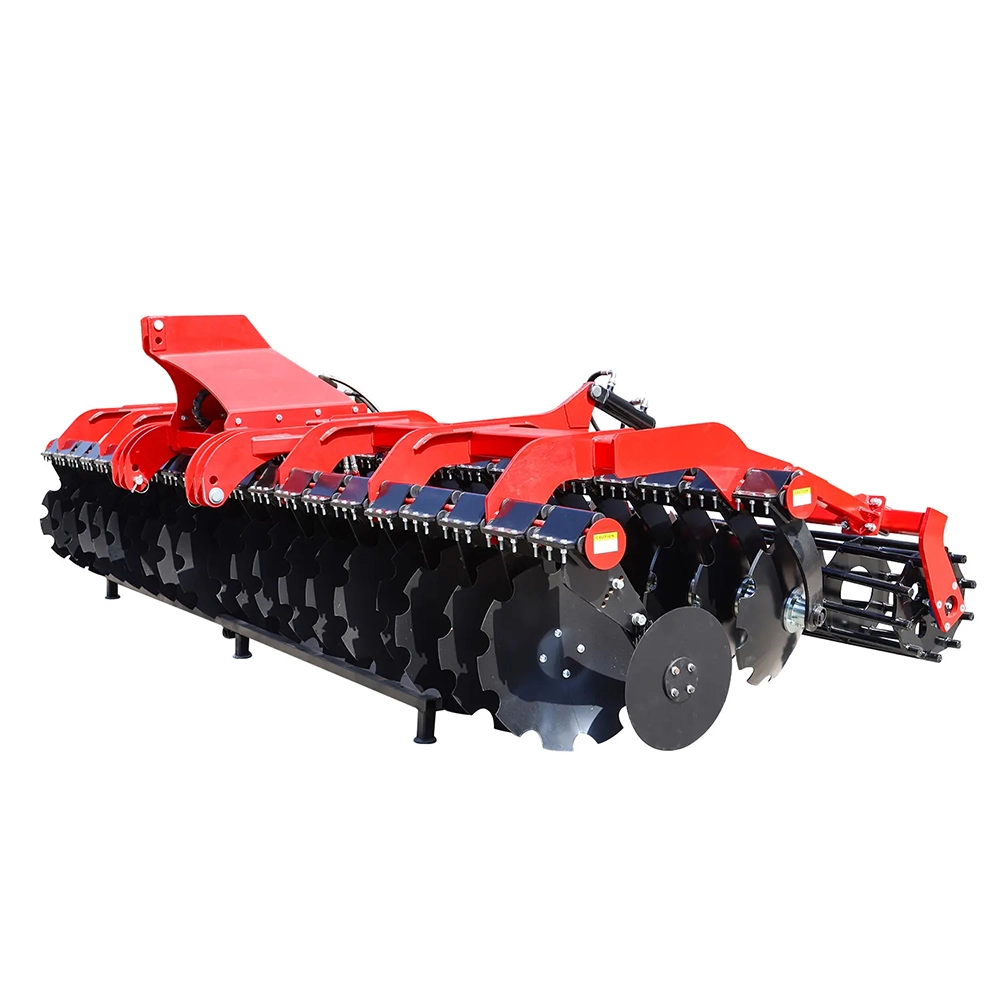

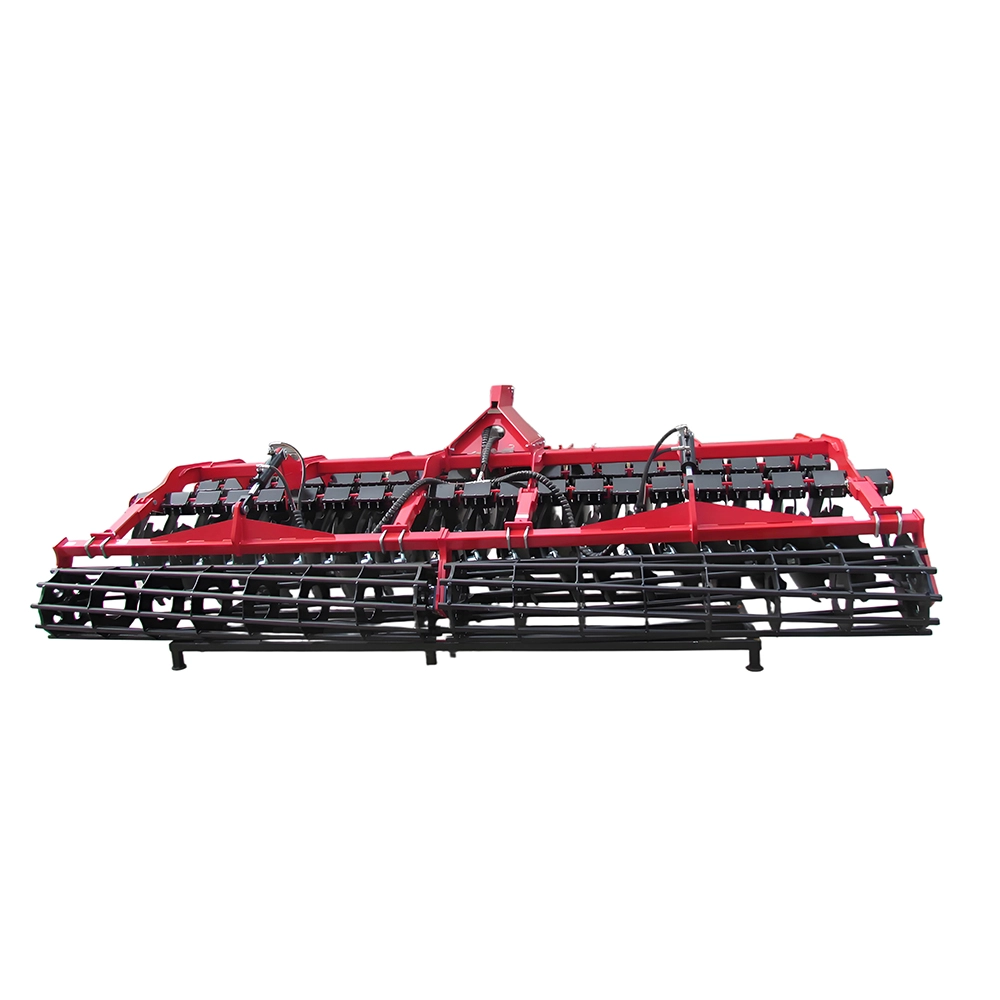

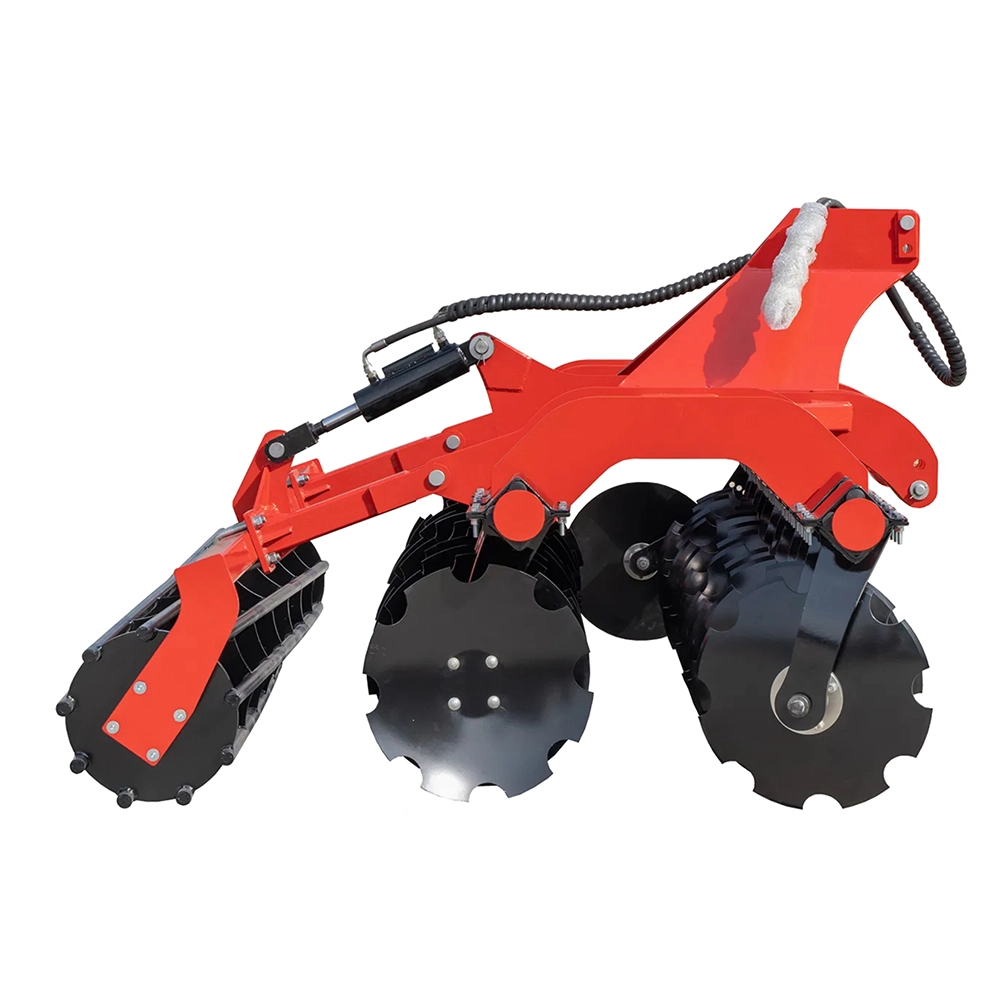

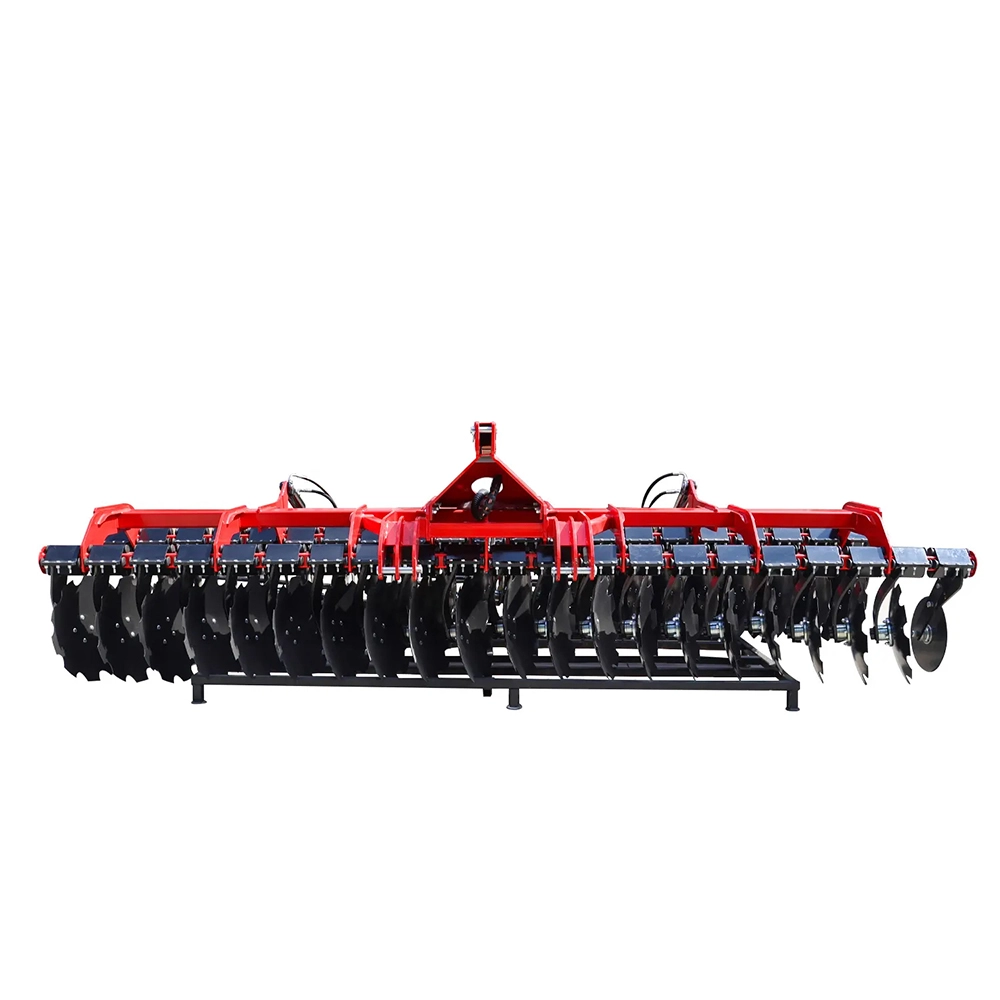

VMHSD Series Hydraulic HIGH SPEED Disc Harrow
VMHSD Series Hydraulic High-Speed Disc Harrow
The VMHSD Series Hydraulic High-Speed Disc Harrow is designed for efficient and high-speed soil preparation, making it ideal for superficial plowing, clod shattering, seedbed preparation, and weed elimination. It is perfect for airing the soil and incorporating organic material, ensuring optimal field conditions. With a working speed of 7-12 km/h and compatibility with 100-150hp tractors, this harrow enhances productivity while reducing operational time.
High-Speed Performance:
-
Works at 7-12 km/h, significantly reducing tillage time.
-
Effectively breaks up clods and root systems for smoother soil preparation.
Versatile & Efficient:
-
Suitable for light and medium soil conditions.
-
Performs superficial plowing to prepare land for sowing.
Heavy-Duty Construction:
-
Durable disc blades ensure long-lasting and efficient operation.
-
Built to withstand continuous field work in various conditions.
Optimized Tilling Widths:
-
Available in 3m, 3.5m, and 4m working widths to suit different field sizes
-
Compatible with quick hitch systems for easy attachment.
Applications:
Ideal for commercial farms, large-scale crop production, and land reclamation, ensuring fast, efficient, and high-quality soil preparation.


Model | VMHSD-30 | VMHSD-35 | VMHSD-40 | |
---|---|---|---|---|
Number Discs | pcs | 24 | 28 | 32 |
Disc Space | mm | 240 | ||
Dia. discs | mm | 560 | ||
Tilling width | mm | 3000 | 3500 | 4000 |
Tilling depth | mm | 180 | ||
Roller Length | mm | 2900 | 3400 | 3900 |
Diameter roller | mm | 450 | ||
Type roller Options |
![]() |
![]() |
||
Working speed | km/h | 7-12km/h | ||
Transport clearance | mm | Min 300 | ||
Transport speed | km/h | 15 | ||
Productivity | ha/h | 2.1-3.3 | 2.5-3.9 | 2.8-4.4 |
Required power | hp | 100-130 | 110-130 | 120-150 |
Length | mm | 1500 | 1700 | 1700 |
Width | mm | 3000 | 3500 | 4000 |
Height | mm | 1500 | 1500 | 1500 |
Weight | kg | 1620 / 1400 | 1950/1750 | 2150/1950 |
