VMFMG series 3-point Linkage Sideslip Finish Mower
VMFMG series 3-point Linkage Sideslip Finish Mower
The VMFMG Series Light-Duty Finish Mowers are engineered for high-efficiency grass and weed cutting across various terrains, including orchards, gardens, lawns, farm paths, and roadside green belts. Compatible with 25HP to 50HP tractors, the series includes two models with 145 cm and 175 cm cutting widths.
Precision Cutting: Fitted with fine high-speed cutting blades, the mower delivers clean, even cuts ideal for maintaining a professional appearance on turf and green areas.
Hydraulic Sideslip (Optional): Offers up to 27 cm of lateral shift, allowing the mower to reach under tree canopies, along fences, or beside fixed obstacles without repositioning the tractor.

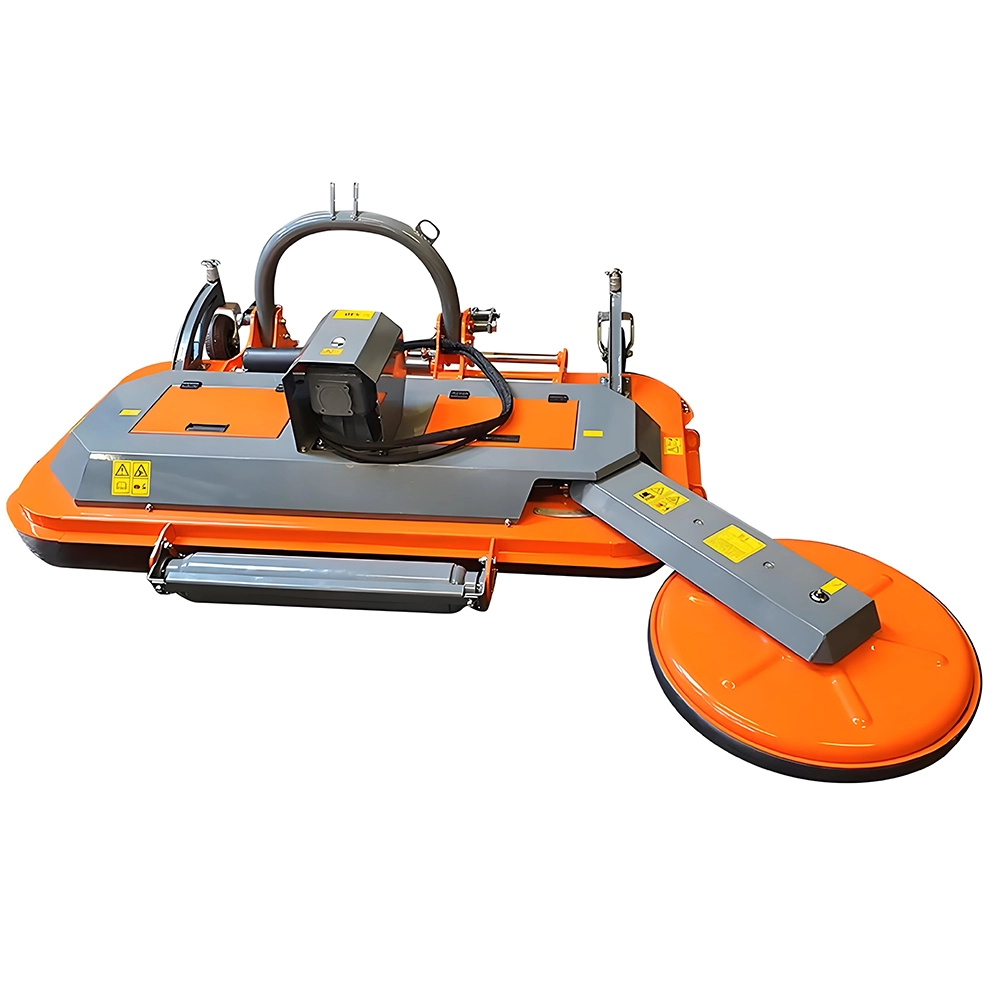

Side Protection Disc (Optional): A passive spring-loaded rebound system prevents damage to both the mower and surrounding plants, ensuring safer navigation around trees and structures.
Heavy-Duty Frame Design: Built with reinforced steel construction and a thick powder-coated finish for enhanced corrosion resistance and long service life—even in challenging outdoor conditions.
Adjustable Cutting Height: Easily fine-tuned for optimal performance across varying grass types and densities.
Low Maintenance Requirements: Fewer moving parts and quality components mean less downtime and lower long-term operating costs.
Compact & Modern Appearance: A sleek design combined with rugged capability makes it suitable for both commercial operators and landowners who value efficiency and style.


Typical Applications:
Row mowing in orchards and vineyards
Lawn and garden maintenance
Municipal roadside vegetation control
Open land or farmyard cleanup
Fence-line and wall-edge trimming





Model | VMFMG150 | VMFMG150H | VMFMG150HS | VMFMG180 | VMFMG180H | VMFMG180HS | |
---|---|---|---|---|---|---|---|
Length(A) | cm | 123 | 123 | 168 | 123 | 123 | 198 |
Width(B) | cm | 162 | 162 | 190 | 192 | 192 | 220 |
Height(C) | cm | 74 | 74 | 74 | 74 | 74 | 74 |
Cutting width | cm | 145 | 145 | 180 | 175 | 175 | 210 |
Max Hydraulic slide space | cm | 27 | 27 | 27 | 27 | 27 | 27 |
Space Left&Right to Centre @Max Left | cm | No slide | 95-67 | 95-95 | No slide | 110-82 | 110-110 |
Space Left&Right to Centre @Max Right | cm | No slide | 68-94 | 68-122 | No slide | 83-109 | 83-137 |
Number of disc | Unit | 3 | 3 | 4 | 3 | 3 | 4 |
PTO Speed | Rpm | 540 | 540 | 540 | 540 | 540 | 540 |
Catgray of linkage | Cat I | Cat I | Cat I | Cat I | Cat I | Cat I | |

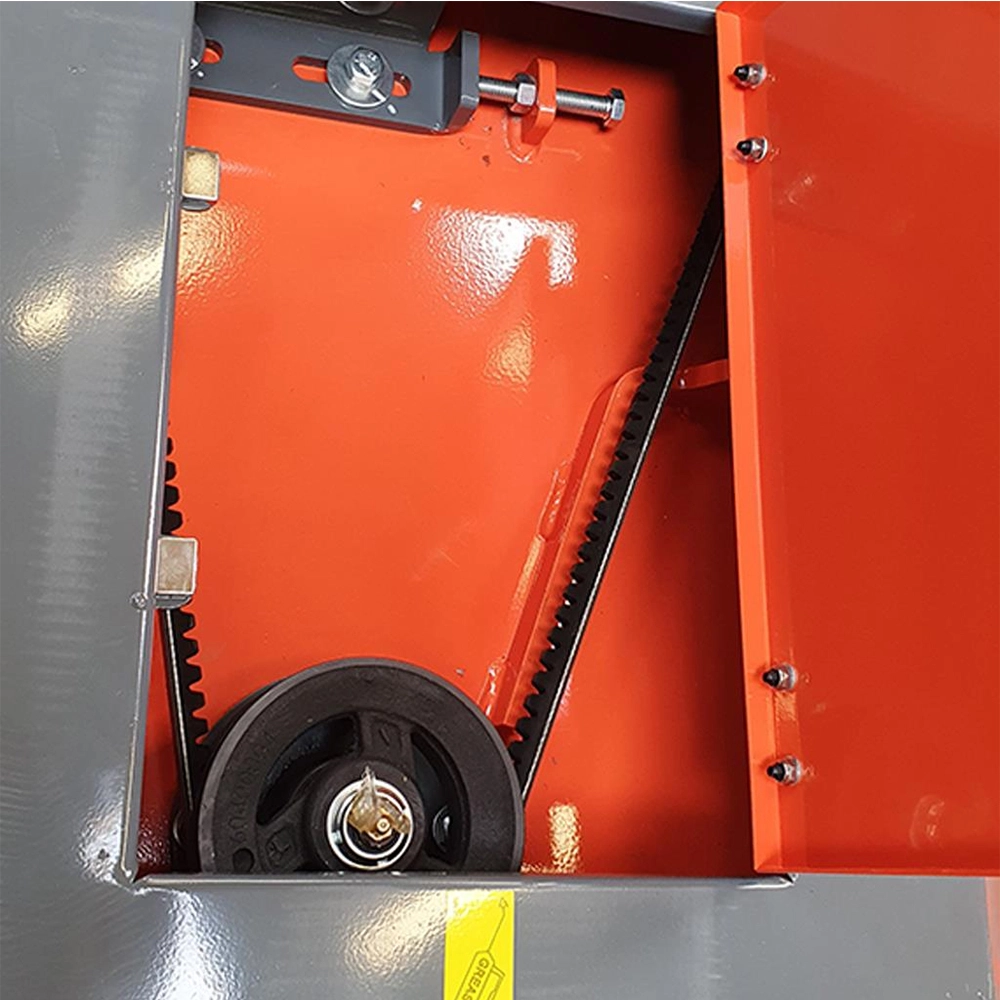

Number of belts | Unit | 3 | 3 | 4 | 3 | 3 | 4 |
Weight | KG | 240 | 266 | 312 | 270 | 286 | 330 |
Suit Power | Hp | 25-50 | 25-50 | 25-50 | 30-50 | 30-50 | 30-50 |

STANDARD
- Normal Cat.1 PTO Shaft 6-6 Spline
OPTIONS
- Clutch-Type Cat.1 PTO Shaft 6-6 Spline
